In Stock Hot Product
065-4211

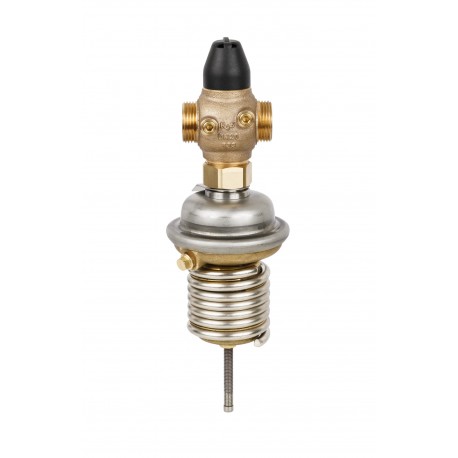

065-4211 DANFOSS HEATING V73D52 PN25 25/8 1,0-5,5 thr bypass
$0.00USD
3149 in stock
Key Specifications
EAN ():5702421805749
Type ():V73D52
Volume ():9.296 Liter
Function ():Press. relief controller
Supplier Information
DANFOSS HEATING
Products: 5013
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702421805749 |
| Type () | V73D52 |
| Volume () | 9.296 Liter |
| Function () | Press. relief controller |
| Net weight () | 3.444 Kilogram |
| Valve size () | DN 25 |
| Application () | District Heating |
| Description () | V73D52 PN25 25/8 1,0-5,5 thr bypass |
| Flow control () | No |
| Gross weight () | 3.444 Kilogram |
| Diameter [mm] () | 25 mm |
| Product group () | Pressure flow controllers |
| Pressure class () | PN 25 |
| Flow limitation () | No |
| Number of ports () | 2 |
| Connection types () | External Thread |
| Function VSP - P () | Yes |
| Function VSP - Q () | No |
| Function VSP - T () | No |
| Mounting version () | Bypass |
| Flow rate [m³/h] () | 0 m³/h |
| Permissible media () | Termo oil |
| Kvs values [m³/h] () | 8 m³/h |
| Pressure controller () | Pressure relief controller |
| Valve body material () | Red bronze CuSn5ZnPb (Rg5) |
| Actuator size [cm²] () | 31 cm² |
| Leakage rate [% Kvs] () | 0.02 |
| Pressure nominal [bar] () | 25 bar |
| Flow rate [m³/h] [Max] () | 0 m³/h |
| Media temperature [°C] [Max] () | 130 °C |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| In scope of WEEE and contain batteries () | No |
| Differential pressure range [bar] [Max] () | 12 bar |
| Differential pressure setting [bar] [Max] () | 5.5 bar |
| Differential pressure setting [bar] [Min] () | 1 bar |
| Select if the Shock valve should be with a Fixed pressure or Adjustablepressure () | Adjustable |
Product Description
V73D52, PN 25, DN 25, Flow rate [m³/h]: 0.00, 1.00 bar - 5.50 bar, External Thread, Mounting version: Bypass
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
V73D52 PN25 25/8 1,0-5,5 thr bypass
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
