064G6641

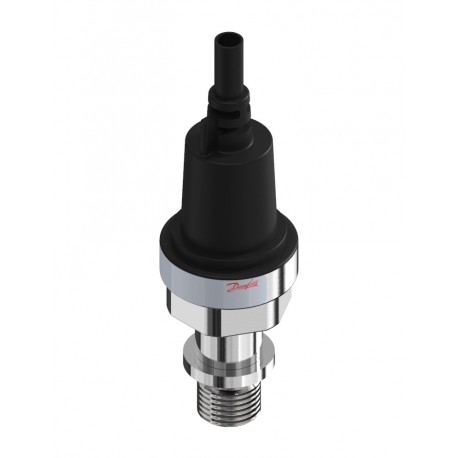

064G6641 DANFOSS CONTROLES INDUSTRIALES Pressure transmitter, MBS 1900
$0.00USD
3033 in stock
Key Specifications
EAN ():5702428821445
Type ():MBS 1900
Volume ():1.232 Liter
+ output ():Brown
Supplier Information
DANFOSS INDUSTRIAL AUTOMATION
Products: 1269
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428821445 |
| Type () | MBS 1900 |
| Volume () | 1.232 Liter |
| + output () | Brown |
| + supply () | Red |
| - common () | Black |
| Approval () | cURus |
| Net weight () | 0.051 Kilogram |
| CE evaluated () | Yes |
| Gross weight () | 0.199 Kilogram |
| UL evaluated () | Yes |
| Output signal () | Ratio metric |
| Product group () | Sensors |
| Pulse-snubber () | No |
| Packing format () | Multi pack |
| Cable length [m] () | 2 m |
| Approval comments () | UL-873 |
| Cable length [in] () | 79 in |
| Specification key () | MBS 1900-1626-A3GB04-2 |
| EU RoHS compliance () | Yes |
| Intrinsically safe () | No |
| Pressure reference () | Absolute |
| UK RoHS compliance () | Yes |
| Enclosure rating IP () | IP67 |
| Pressure Male/Female () | Male |
| China RoHS compliance () | Yes |
| Electrical connection () | Cable |
| Fault Monitoring Demand () | No |
| Response time max. [ms] () | 4 ms |
| TEB inside CTR ±FS [%] () | 3 % |
| EU RoHS exemption clause () | No |
| Pressure connection size () | 1/4 |
| Pressure connection type () | G |
| Product Name Description () | Pressure transmitter |
| Electrical conn. comments () | Screened cable |
| Pressure connection notes () | A |
| Non-linearity BFSL [±FS%] () | 0.5 % |
| Pressure range [bar] [max] () | 4 bar |
| Pressure range [bar] [min] () | 0 bar |
| Pressure range [psi] [max] () | 58.02 psi |
| Pressure range [psi] [min] () | 0 psi |
| Quantity per packing format () | 8 pc |
| Reference temperature [°C] () | 20 °C |
| Reference temperature [°F] () | 68 °F |
| Supply voltage [V] DC [max] () | 5.5 V |
| Supply voltage [V] DC [min] () | 4.5 V |
| International Article Number () | 5702428821445 |
| Overload pressure max. [bar] () | 75 bar |
| Overload pressure max. [psi] () | 1088 psi |
| Pressure connection HEX [mm] () | 24 mm |
| Pressure connection standard () | DIN 3852-E |
| Accuracy @ ref. temp. ±FS [%] () | 1 % |
| REACH Candidate List substances () | No |
| Ratiometric of Vsupply [%] [max] () | 90 % |
| Ratiometric of Vsupply [%] [min] () | 10 % |
| Compensated temp. range [°C] [max] () | 80 °C |
| Compensated temp. range [°C] [min] () | 0 °C |
| Compensated temp. range [°F] [max] () | 176 °F |
| Compensated temp. range [°F] [min] () | 32 °F |
| Medium temperature range [°C] [max] () | 80 °C |
| Medium temperature range [°C] [min] () | 0 °C |
| Medium temperature range [°F] [max] () | 176 °F |
| Medium temperature range [°F] [min] () | 32 °F |
| Ambient temperature range [°C] [max] () | 80 °C |
| Ambient temperature range [°C] [min] () | -20 °C |
| Ambient temperature range [°F] [max] () | 176 °F |
| Ambient temperature range [°F] [min] () | -4 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
Pressure transmitter, MBS 1900, 0.00 bar - 4.00 bar, 0.00 psi - 58.02 psi
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Pressure reference: Absolute, Output signal: Ratio metric, Electrical connection: Cable, Pressure connection type: G, Pressure connection size: 1/4, Specification key: MBS 1900-1626-A3GB04-2
