064G6501

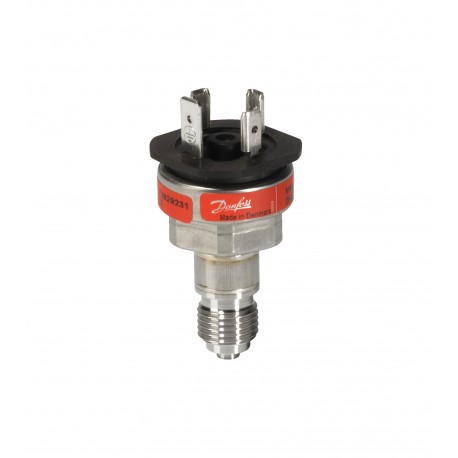

064G6501 DANFOSS CONTROLES INDUSTRIALES Pressure transmitter, MBS 1900
$0.00USD
3814 in stock
Key Specifications
EAN ():5702423269747
Type ():MBS 1900
Volume ():0.102 Liter
+ supply ():Pin 1
Supplier Information
DANFOSS INDUSTRIAL AUTOMATION
Products: 1269
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702423269747 |
| Type () | MBS 1900 |
| Volume () | 0.102 Liter |
| + supply () | Pin 1 |
| - common () | Pin 2 |
| Approval () | cURus |
| Net weight () | 0.043 Kg |
| Gross weight () | 0.046 Kg |
| Product group () | Sensors |
| Pulse-snubber () | No |
| Packing format () | Multi pack |
| Flush diaphragm () | No |
| Approval comments () | UL-873 |
| Specification key () | MBS 1900-1811-A0AB04-0 |
| EU RoHS compliance () | Yes |
| Intrinsically safe () | No |
| Pressure reference () | Gauge (relative) |
| Enclosure rating IP () | IP65 |
| Pressure Male/Female () | Male |
| Electrical connection () | Angular connector |
| Fault Monitoring Demand () | No |
| Response time max. [ms] () | 4 ms |
| TEB inside CTR ±FS [%] () | 3 % |
| Output signal [mA] [max] () | 20 mA |
| Output signal [mA] [min] () | 4 mA |
| Pressure connection size () | 1/4 |
| Pressure connection type () | G |
| Product Name Description () | Pressure transmitter |
| Accuracy, typical [±FS%] () | 1 % |
| Pressure connection notes () | A |
| Electrical connection size () | 4 pin |
| Non-linearity BFSL [±FS%] () | 0.5 % |
| Pressure range [bar] [max] () | 6 bar |
| Pressure range [bar] [min] () | 0 bar |
| Pressure range [psi] [max] () | 87.02 psi |
| Pressure range [psi] [min] () | 0 psi |
| Quantity per packing format () | 45 pc |
| Reference temperature [°C] () | 20 °C |
| Reference temperature [°F] () | 68 °F |
| Supply voltage [V] DC [max] () | 28 V |
| Supply voltage [V] DC [min] () | 9 V |
| Electrical conn. Male/Female () | Male |
| International Article Number () | 5702423269747 |
| Overload pressure max. [bar] () | 75 bar |
| Overload pressure max. [psi] () | 1088 psi |
| Pressure connection HEX [mm] () | 24 mm |
| Pressure connection standard () | EN 837 |
| Accuracy @ ref. temp. ±FS [%] () | 1 % |
| Electrical connection standard () | EN 175301-803-A |
| REACH Candidate List substances () | No |
| Compensated temp. range [°C] [max] () | 80 °C |
| Compensated temp. range [°C] [min] () | 0 °C |
| Compensated temp. range [°F] [max] () | 176 °F |
| Compensated temp. range [°F] [min] () | 32 °F |
| Medium temperature range [°C] [max] () | 80 °C |
| Medium temperature range [°C] [min] () | 0 °C |
| Medium temperature range [°F] [max] () | 176 °F |
| Medium temperature range [°F] [min] () | 32 °F |
| Ambient temperature range [°C] [max] () | 80 °C |
| Ambient temperature range [°C] [min] () | -20 °C |
| Ambient temperature range [°F] [max] () | 176 °F |
| Ambient temperature range [°F] [min] () | -4 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
Pressure transmitter, MBS 1900, 0.00 bar - 6.00 bar, 0.00 psi - 87.02 psi
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Pressure reference: Gauge (relative), Electrical connection: Angular connector, Pressure connection type: G, Pressure connection size: 1/4, Specification key: MBS 1900-1811-A0AB04-0
