064G5232

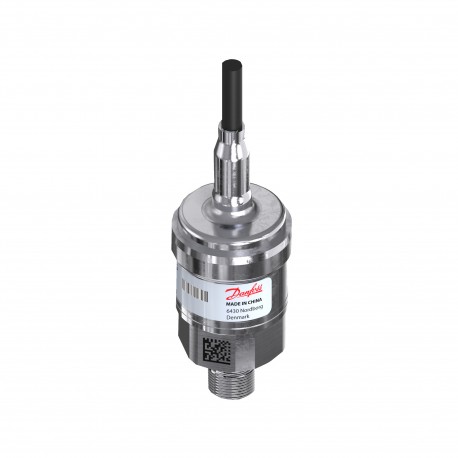

064G5232 DANFOSS CONTROLES INDUSTRIALES Pressure transmitter, MBS 9200
$0.00USD
4574 in stock
Key Specifications
EAN ():5702428937474
Type ():MBS 9200
Volume ():1.25 Liter
+ supply ():Brown
Supplier Information
DANFOSS INDUSTRIAL AUTOMATION
Products: 1269
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428937474 |
| Type () | MBS 9200 |
| Volume () | 1.25 Liter |
| + supply () | Brown |
| - common () | Black |
| Net weight () | 0.245 Kg |
| Gross weight () | 0.269 Kg |
| Output signal () | Current |
| Product group () | Sensors |
| Pulse-snubber () | No |
| Packing format () | Multi pack |
| Cable length [m] () | 2 m |
| SCIP dossier no. () | 16d2efc6-64f3-4a4e-ae98-a3fd7ce0218d |
| Cable length [in] () | 79 in |
| Specification key () | MBS 9200-B711-A3GB04-1 |
| EU RoHS compliance () | Yes |
| Intrinsically safe () | No |
| Pressure reference () | Gauge (relative) |
| Enclosure rating IP () | IP65 |
| Burst pressure [bar] () | 50 bar |
| Pressure Male/Female () | Male |
| Electrical connection () | Cable |
| TEB inside CTR ±FS [%] () | 1.5 % |
| Durability P @ 10-90% FS () | 10000000 |
| Output signal [mA] [max] () | 20 mA |
| Output signal [mA] [min] () | 4 mA |
| Pressure connection size () | 1/4 |
| Pressure connection type () | G |
| Product Name Description () | Pressure transmitter |
| Electrical conn. comments () | Screened cable |
| Pressure connection notes () | A |
| Non-linearity BFSL [±FS%] () | 0.2 % |
| Pressure range [bar] [max] () | 0.2 bar |
| Pressure range [bar] [min] () | 0 bar |
| Pressure range [psi] [max] () | 2.9 psi |
| Pressure range [psi] [min] () | 0 psi |
| Quantity per packing format () | 8 pc |
| Reference temperature [°C] () | 25 °C |
| Supply voltage [V] DC [max] () | 32 V |
| Supply voltage [V] DC [min] () | 9 V |
| Electrical conn. Male/Female () | Male and Female |
| Overload pressure max. [bar] () | 3.5 bar |
| Pressure connection HEX [mm] () | 27 mm |
| Pressure connection standard () | DIN 3852-E |
| Hysteresis and repeat.[±FS%] () | 0.1 % |
| Mount.pos. err. @ 180°[±FS%] () | 0.35 % |
| Recommen. mounting torque [Nm] () | 25 nm |
| Acc. @ ref. Temp. ±FS typ. [%] () | 0.5 % |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1)Dodecamethylcyclohexasiloxane (D6, CAS no. 540-97-6) |
| Compensated temp. range [°C] [max] () | 80 °C |
| Compensated temp. range [°C] [min] () | 0 °C |
| Medium temperature range [°C] [max] () | 125 °C |
| Medium temperature range [°C] [min] () | -20 °C |
| Medium temperature range [°F] [max] () | 257 °F |
| Medium temperature range [°F] [min] () | -4 °F |
| Ambient temperature range [°C] [max] () | 100 °C |
| Ambient temperature range [°C] [min] () | -25 °C |
| Storage temperature range [°C] [max] () | 125 °C |
| Storage temperature range [°C] [min] () | -40 °C |
| Storage temperature range [°F] [max] () | 257 °F |
| Storage temperature range [°F] [min] () | -40 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
Pressure transmitter, MBS 9200, 0.00 bar - 0.20 bar, 0.00 psi - 2.90 psi
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Pressure reference: Gauge (relative), Output signal: Current, Electrical connection: Cable, Pressure connection type: G, Pressure connection size: 1/4, Specification key: MBS 9200-B711-A3GB04-1
