In Stock Hot Product
064875

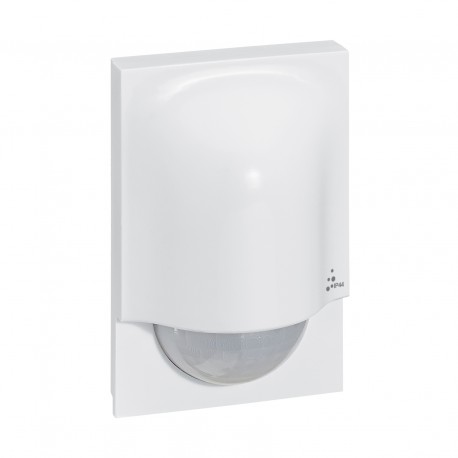

064875 LEGRAND wN-IR SENSOR WL IP44 WHITE
$0.00USD
3257 in stock
Key Specifications
Feature Name:Feature Value
Depth (EF000049):48.5 mm
Model (EF000010):Movement sensor
Width (EF000008):77 mm
Supplier Information
LEGRAND
Products: 19
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Feature Name | Feature Value |
| Depth (EF000049) | 48.5 mm |
| Model (EF000010) | Movement sensor |
| Width (EF000008) | 77 mm |
| Colour (EF000007) | White |
| Height (EF000040) | 114.5 mm |
| Material (EF002169) | Plastic |
| Animal zone (EF006311) | No |
| Transparent (EF006243) | No |
| Bus system KNX (EF001499) | No |
| Bus system LON (EF003831) | No |
| Max. duty cycle (EF006590) | 15 min |
| Mounting method (EF000003) | Surface mounted |
| Switching power (EF001313) | 0 W |
| Material quality (EF001257) | Thermoplastic |
| Substation input (EF003876) | No |
| Other bus systems (EF003811) | None |
| Surface finishing (EF006569) | Glossy |
| Surface protection (EF000139) | Untreated |
| Bus system Powernet (EF001501) | No |
| Max. reach sideways (EF001323) | 6 m |
| Min. switch-on time (EF006589) | 15 s |
| With bus connection (EF001504) | No |
| Max. reach frontally (EF001322) | 8 m |
| RAL-number (similar) (EF003882) | 9003 |
| Operation mode switch (EF004530) | No |
| Creep-under protection (EF000147) | No |
| Diameter reach on floor (EF003843) | 6 m |
| Optimum mounting height (EF008011) | 2.5 m |
| Bus system radio frequency (EF001500) | No |
| Detection angle horizontal (EF006582) | 140 ° |
| Staircase light controller (EF001098) | Yes |
| Radio frequency bidirectional (EF009466) | Yes |
| Switch-off delay self-learning (EF007667) | No |
| Bus system KNX-RF (Radio Frequency) (EF008855) | No |
| Response value luminosity adjustable (EF007575) | Yes |
| Min. depth of built-in installation box (EF012278) | 0 mm |
| Teach-function for response value luminosity (EF003898) | No |
Product Description
The motion detector wireless infrared technology IP44 allows you to control up to 20 switches wired, micromódulos, bases of power and outputs cables - Requires the pre-installation of Starter Pack - W
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
