063G4377

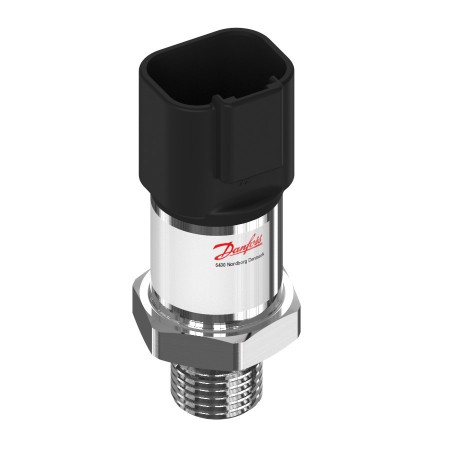

063G4377 DANFOSS CONTROLES INDUSTRIALES Pressure transmitter, MBS 1350
$0.00USD
4549 in stock
Key Specifications
EAN ():5702423266388
Type ():MBS 1350
Volume ():0.38 Liter
+ output ():Pin 4
Supplier Information
DANFOSS INDUSTRIAL AUTOMATION
Products: 1269
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702423266388 |
| Type () | MBS 1350 |
| Volume () | 0.38 Liter |
| + output () | Pin 4 |
| + supply () | Pin 2 |
| - common () | Pin 1 |
| Comments () | SWITCH:12V AT 25 BAR PIN 3 |
| Net weight () | 0.07 Kg |
| Gross weight () | 0.078 Kg |
| Output signal () | Voltage |
| Product group () | Sensors |
| Pulse-snubber () | Yes |
| Packing format () | Industrial pack |
| Specification key () | MBS 1350-341C-C3BD11-1 |
| EU RoHS compliance () | Yes |
| Pressure reference () | Gauge (relative) |
| Enclosure rating IP () | IP67 |
| Burst pressure [bar] () | 2500 bar |
| Pressure Male/Female () | Male |
| Burst pressure [psig] () | 36000 psig |
| Electrical connection () | Deutsch |
| Output signal [V] [max] () | 4.5 V |
| Output signal [V] [min] () | 0.5 V |
| Response time max. [ms] () | 1 ms |
| Pressure connection size () | 9/16-18 |
| Pressure connection type () | UNF |
| Product Name Description () | Pressure transmitter |
| Accuracy, typical [±FS%] () | 0.5 % |
| Electrical conn. comments () | Au coated |
| Electrical connection size () | 4 pin |
| Pressure range [bar] [max] () | 250 bar |
| Pressure range [bar] [min] () | 0 bar |
| Pressure range [psi] [max] () | 3625.93 psi |
| Pressure range [psi] [min] () | 0 psi |
| Quantity per packing format () | 50 pc |
| Supply voltage [V] DC [max] () | 30 V |
| Supply voltage [V] DC [min] () | 8 V |
| Electrical conn. Male/Female () | Male |
| Overload pressure max. [bar] () | 750 bar |
| Pressure connection HEX [mm] () | 22 mm |
| Pressure connection standard () | SAE J1926/2 |
| Overload pressure max. [psig] () | 10000 psig |
| Compensated temp. range [°C] [max] () | 125 °C |
| Compensated temp. range [°C] [min] () | -40 °C |
| Compensated temp. range [°F] [max] () | 257 °F |
| Compensated temp. range [°F] [min] () | -40 °F |
| Medium temperature range [°C] [max] () | 125 °C |
| Medium temperature range [°C] [min] () | -40 °C |
| Medium temperature range [°F] [max] () | 257 °F |
| Medium temperature range [°F] [min] () | -40 °F |
| Ambient temperature range [°C] [max] () | 125 °C |
| Ambient temperature range [°C] [min] () | -40 °C |
| Ambient temperature range [°F] [max] () | 257 °F |
| Ambient temperature range [°F] [min] () | -40 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
Pressure transmitter, MBS 1350, 0.00 bar - 250.00 bar, 0.00 psi - 3625.93 psi
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Pressure reference: Gauge (relative), Output signal: Voltage, Electrical connection: Deutsch, Pressure connection type: UNF, Pressure connection size: 9/16-18, Specification key: MBS 1350-341C-C3BD11-1
