063G4061

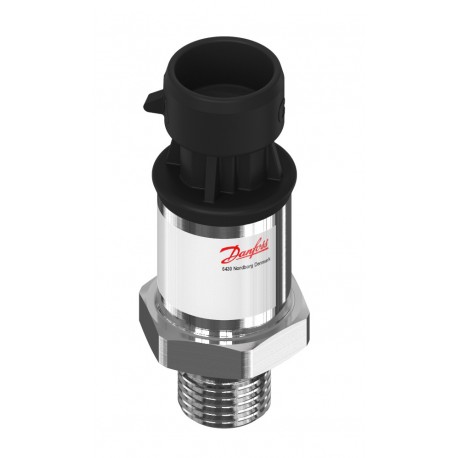

063G4061 DANFOSS CONTROLES INDUSTRIALES Pressure transmitter, MBS 1200
$0.00USD
3256 in stock
Key Specifications
EAN ():5702423258741
Type ():MBS 1200
Volume ():0.225 Liter
+ supply ():Pin B
Supplier Information
DANFOSS INDUSTRIAL AUTOMATION
Products: 1269
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702423258741 |
| Type () | MBS 1200 |
| Volume () | 0.225 Liter |
| + supply () | Pin B |
| - common () | Pin A |
| Net weight () | 0.066 Kg |
| Gross weight () | 0.066 Kg |
| Output signal () | Current |
| Product group () | Sensors |
| Pulse-snubber () | No |
| Packing format () | Industrial pack |
| Identical product () | 063G1061 |
| Specification key () | MBS 1200-2011-C2GB04 |
| EU RoHS compliance () | Yes |
| Pressure reference () | Gauge (relative) |
| Enclosure rating IP () | IP67 |
| Burst pressure [bar] () | 400 bar |
| Pressure Male/Female () | Male |
| Burst pressure [psig] () | 5800 psig |
| Electrical connection () | Round Packard Metri-Pack |
| Response time max. [ms] () | 1 ms |
| Output signal [mA] [max] () | 20 mA |
| Output signal [mA] [min] () | 4 mA |
| Pressure connection size () | 1/4 |
| Pressure connection type () | G |
| Product Name Description () | Pressure transmitter |
| Accuracy, typical [±FS%] () | 0.5 % |
| Electrical conn. comments () | Sn coated |
| Pressure connection notes () | A |
| Electrical connection size () | 3 pin |
| Pressure range [bar] [max] () | 10 bar |
| Pressure range [bar] [min] () | 0 bar |
| Pressure range [psi] [max] () | 145 psi |
| Pressure range [psi] [min] () | 0 psi |
| Quantity per packing format () | 50 pc |
| Supply voltage [V] DC [max] () | 30 V |
| Supply voltage [V] DC [min] () | 8 V |
| Electrical conn. Male/Female () | Male |
| Overload pressure max. [bar] () | 30 bar |
| Pressure connection HEX [mm] () | 22 mm |
| Pressure connection standard () | DIN 3852-E |
| Overload pressure max. [psig] () | 435 psig |
| Electrical connection standard () | 150 SERIES |
| REACH Candidate List substances () | No |
| Compensated temp. range [°C] [max] () | 125 °C |
| Compensated temp. range [°C] [min] () | -40 °C |
| Compensated temp. range [°F] [max] () | 257 °F |
| Compensated temp. range [°F] [min] () | -40 °F |
| Medium temperature range [°C] [max] () | 125 °C |
| Medium temperature range [°C] [min] () | -40 °C |
| Medium temperature range [°F] [max] () | 257 °F |
| Medium temperature range [°F] [min] () | -40 °F |
| Ambient temperature range [°C] [max] () | 100 °C |
| Ambient temperature range [°C] [min] () | -40 °C |
| Ambient temperature range [°F] [max] () | 212 °F |
| Ambient temperature range [°F] [min] () | -40 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
Pressure transmitter, MBS 1200, 0.00 bar - 10.00 bar, 0.00 psi - 145.00 psi
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Pressure reference: Gauge (relative), Output signal: Current, Electrical connection: Round Packard Metri-Pack, Pressure connection type: G, Pressure connection size: 1/4, Specification key: MBS 1200-2011-C2GB04
