063G1392

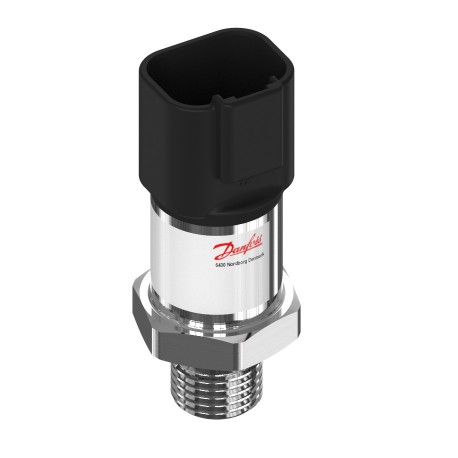

063G1392 DANFOSS CONTROLES INDUSTRIALES Pressure transmitter, MBS 1250
$0.00USD
3745 in stock
Key Specifications
EAN ():5702423266401
Type ():MBS 1250
Volume ():0.097 Liter
+ output ():Pin 4
Supplier Information
DANFOSS INDUSTRIAL AUTOMATION
Products: 1269
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702423266401 |
| Type () | MBS 1250 |
| Volume () | 0.097 Liter |
| + output () | Pin 4 |
| + supply () | Pin 2 |
| - common () | Pin 1 |
| Net weight () | 0.069 Kg |
| Gross weight () | 0.069 Kg |
| Output signal () | Voltage |
| Product group () | Sensors |
| Pulse-snubber () | Yes |
| Packing format () | Multi pack |
| Identical product () | 063G4392 |
| Specification key () | MBS 1250-3813-C3BD11 |
| EU RoHS compliance () | Yes |
| Pressure reference () | Gauge (relative) |
| Enclosure rating IP () | IP67 |
| Burst pressure [bar] () | 4000 bar |
| Pressure Male/Female () | Male |
| Burst pressure [psig] () | 58000 psig |
| Electrical connection () | Deutsch |
| Output signal [V] [max] () | 5 V |
| Output signal [V] [min] () | 1 V |
| Response time max. [ms] () | 1 ms |
| Pressure connection size () | 9/16-18 |
| Pressure connection type () | UNF |
| Product Name Description () | Pressure transmitter |
| Accuracy, typical [±FS%] () | 0.5 % |
| Electrical conn. comments () | Au coated |
| Electrical connection size () | 4 pin |
| Pressure range [bar] [max] () | 600 bar |
| Pressure range [bar] [min] () | 0 bar |
| Pressure range [psi] [max] () | 8700 psi |
| Pressure range [psi] [min] () | 0 psi |
| Quantity per packing format () | 48 pc |
| Supply voltage [V] DC [max] () | 30 V |
| Supply voltage [V] DC [min] () | 8 V |
| Electrical conn. Male/Female () | Male |
| Overload pressure max. [bar] () | 2100 bar |
| Pressure connection HEX [mm] () | 22 mm |
| Pressure connection standard () | SAE J1926/2 |
| Overload pressure max. [psig] () | 30000 psig |
| Electrical connection standard () | DT04 |
| REACH Candidate List substances () | No |
| Compensated temp. range [°C] [max] () | 125 °C |
| Compensated temp. range [°C] [min] () | -40 °C |
| Compensated temp. range [°F] [max] () | 257 °F |
| Compensated temp. range [°F] [min] () | -40 °F |
| Medium temperature range [°C] [max] () | 125 °C |
| Medium temperature range [°C] [min] () | -40 °C |
| Medium temperature range [°F] [max] () | 257 °F |
| Medium temperature range [°F] [min] () | -40 °F |
| Ambient temperature range [°C] [max] () | 125 °C |
| Ambient temperature range [°C] [min] () | -40 °C |
| Ambient temperature range [°F] [max] () | 257 °F |
| Ambient temperature range [°F] [min] () | -40 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
Pressure transmitter, MBS 1250, 0.00 bar - 600.00 bar, 0.00 psi - 8700.00 psi
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Pressure reference: Gauge (relative), Output signal: Voltage, Electrical connection: Deutsch, Pressure connection type: UNF, Pressure connection size: 9/16-18, Specification key: MBS 1250-3813-C3BD11
