061N4000

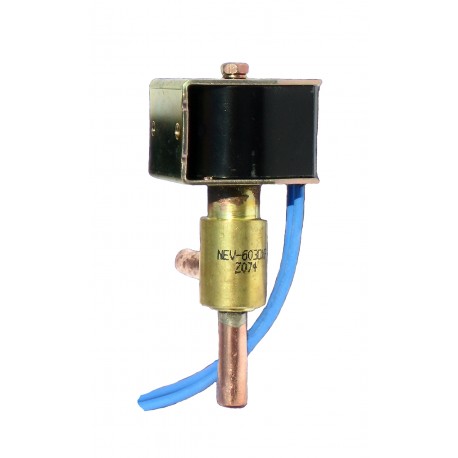

061N4000 DANFOSS REFRIGERATION Solenoid coil, NEV
$0.00USD
4839 in stock
Key Specifications
EAN ():5702428269148
Coil ():Yes
Type ():NEV
Volume ():0.159 Liter
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428269148 |
| Coil () | Yes |
| Type () | NEV |
| Volume () | 0.159 Liter |
| Approval () | CEUKCAVDE |
| Net weight () | 0.124 Kilogram |
| Serviceable () | No |
| Wire colour () | Blue |
| CE evaluated () | Yes |
| Gross weight () | 0.129 Kilogram |
| Body material () | Polymer |
| Product group () | Solenoid valves |
| Frequency [Hz] () | 50 Hz |
| Packing format () | Industrial pack |
| Cable length [m] () | 0.6 m |
| SCIP dossier no. () | f8fe2fb6-0750-4373-b03a-5b5988b72210 |
| Type designation () | NEV-MOAJ503C1 |
| Cable length [in] () | 23.6 in |
| EU RoHS compliance () | Out of scope |
| Parts Program name () | EV/PV solenoid valves |
| UK RoHS compliance () | Out of scope |
| Class of Insulation () | B |
| Product accessories () | No |
| China RoHS compliance () | Out of scope |
| Power consumption [W] () | 7 W |
| Max. ambient temperature () | 80 °C |
| Product Name Description () | Solenoid coil |
| SCIP dossier product name () | Four-way valve(1) |
| Quantity per packing format () | 100 pc |
| Supply voltage [V] AC [max] () | 240 V |
| Supply voltage [V] AC [min] () | 220 V |
| Coil temperature, max. [°C] () | 130 °C |
| Coil temperature, max. [°F] () | 266 °F |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| In scope of WEEE and contain batteries () | No |
Product Description
Solenoid coil, NEV, 0.600 m, Supply voltage [V] AC: 220 - 240, Industrial pack
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Body material: Polymer
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
