061N3000

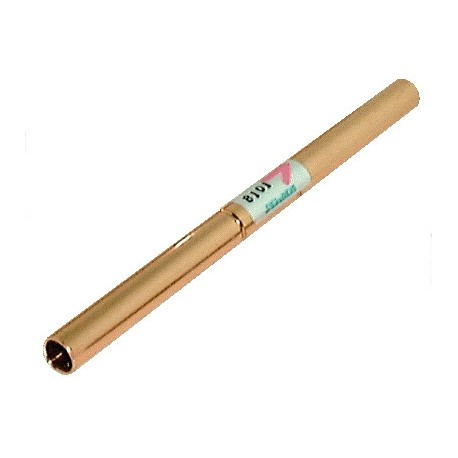

061N3000 DANFOSS REFRIGERATION Check valve, BCV
$0.00USD
4044 in stock
Key Specifications
EAN ():5702428269346
Type ():BCV
Design ():Float
Volume ():0.031 Liter
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428269346 |
| Type () | BCV |
| Design () | Float |
| Volume () | 0.031 Liter |
| Approval () | CEUKCA |
| Direction () | Straightway |
| Net weight () | 0.041 Kg |
| Gross weight () | 0.042 Kg |
| Refrigerants () | R134aR22R404AR407CR410AR507A |
| Body material () | Copper |
| Product group () | Check valves |
| Flow direction () | Single-flow |
| Packing format () | Industrial pack |
| Inlet size [in] () | 3/8 in |
| Kv value [m³/h] () | 0.83 m³/h |
| Outlet size [in] () | 3/8 in |
| SCIP dossier no. () | be7ba087-4bcb-4c85-8e38-190a736d6307 |
| Cv value [gal/min] () | 0.97 gal/min |
| Connection material () | Copper |
| Inlet connection type () | Solder, ODF |
| Outlet connection type () | Solder, ODF |
| Flow direction indicator () | Label printed 1-way arrow |
| Min. Pressure drop [bar] () | 0.078 bar |
| Min. Pressure drop [psi] () | 1.1 psi |
| Product Name Description () | Check valve |
| SCIP dossier product name () | Check valve(3) |
| Max. Working Pressure [bar] () | 41.5 bar |
| Quantity per packing format () | 250 pc |
| Max. Working Pressure [psig] () | 602 psig |
| Temperature range [°C] [max] () | 120 °C |
| Temperature range [°C] [min] () | -30 °C |
| Temperature range [°F] [max] () | 248 °F |
| Temperature range [°F] [min] () | -22 °F |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| In scope of WEEE and contain batteries () | No |
Product Description
Check valve, BCV, Max. Working Pressure [bar]: 41.5
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Inlet connection type: Solder, ODF, Outlet connection type: Solder, ODF, Direction: Straightway, Packing format: Industrial pack
