061N2001

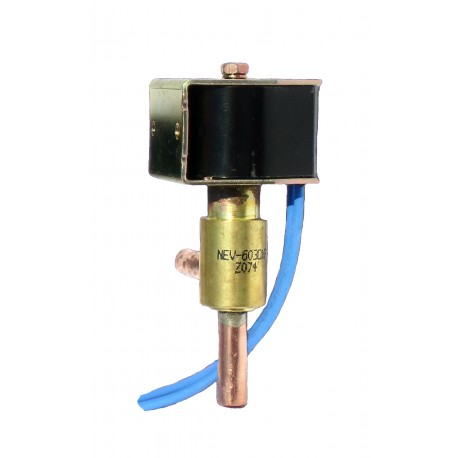

061N2001 DANFOSS REFRIGERATION Solenoid valve, NEV
$0.00USD
4592 in stock
Key Specifications
EAN ():5702428269612
Coil ():No
Type ():NEV
Volume ():0.18 Liter
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428269612 |
| Coil () | No |
| Type () | NEV |
| Volume () | 0.18 Liter |
| Approval () | CEUKCA |
| Net weight () | 0.049 Kg |
| Serviceable () | No |
| Gross weight () | 0.052 Kg |
| MaxOPD [bar] () | 20.6 bar |
| MinODP [bar] () | 0 bar |
| MinODP [psi] () | 0 psi |
| Refrigerants () | R134aR22R404AR407C |
| MaxOPD [psig] () | 299 psig |
| Product group () | Solenoid valves |
| Packing format () | Industrial pack |
| Port size [mm] () | 1.9 mm |
| Connection type () | Solder |
| Inlet size [in] () | 1/4 in |
| Inlet size [mm] () | 6.35 mm |
| Valve operation () | NC |
| Kv value [m³/h] () | 0.08 m³/h |
| Outlet size [in] () | 1/4 in |
| Outlet size [mm] () | 6.35 mm |
| SCIP dossier no. () | 69373b8b-09ff-4773-885b-0c2750a14e77 |
| Type designation () | NEV-202DXF |
| Cv value [gal/min] () | 0.1 gal/min |
| EU RoHS compliance () | No - out of scope |
| Product accessories () | No |
| Burst pressure [bar] () | 132 bar |
| Design config. Style () | 90° angle |
| Burst pressure [psig] () | 1914 psig |
| Outlet connection type () | Solder |
| Product Name Description () | Solenoid valve |
| SCIP dossier product name () | Solenoid valve body |
| Max. Working Pressure [bar] () | 33 bar |
| Quantity per packing format () | 200 pc |
| Max. Working Pressure [psig] () | 479 psig |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Coil mount, recom. torque [Nm] [max] () | 1.96 nm |
| Coil mount, recom. torque [Nm] [min] () | 1.47 nm |
| Medium temperature range [°C] [max] () | 120 °C |
| Medium temperature range [°C] [min] () | -30 °C |
| Medium temperature range [°F] [max] () | 248 °F |
| Medium temperature range [°F] [min] () | -22 °F |
| Ambient temperature range [°C] [max] () | 50 °C |
| Ambient temperature range [°C] [min] () | -30 °C |
| Ambient temperature range [°F] [max] () | 122 °F |
| Ambient temperature range [°F] [min] () | -22 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
Solenoid valve, NEV, Industrial pack
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Kv value [m³/h]: 0.080
