061L1186

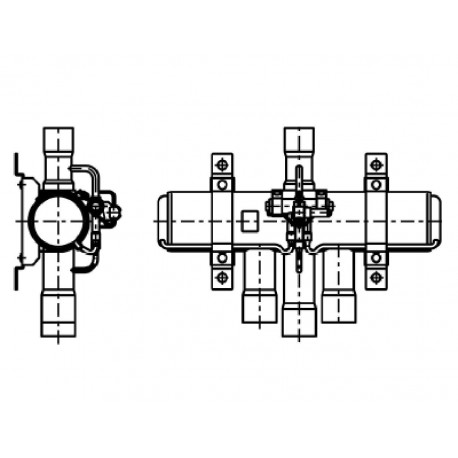

061L1186 DANFOSS REFRIGERATION 4-way reversing valve
$0.00USD
3747 in stock
Key Specifications
EAN:5702428273749
Coil:No
Approval:CE
Net weight:23.07 Kg
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 5702428273749 |
| Coil | No |
| Approval | CE |
| Net weight | 23.07 Kg |
| Gross weight | 23.2 Kg |
| MaxOPD [bar] | 31 bar |
| MinODP [bar] | 3 bar |
| MinODP [psi] | 44 psi |
| Product name | 4-way reversing valve |
| Product type | VHV |
| Refrigerants | R134aR22R404AR407CR410A |
| MaxOPD [psig] | 450 psig |
| Product Group | 4-way reversing valves |
| Packing format | Single pack |
| Type designation | VHV-6001 |
| Discharge conn type | MALE |
| Design config. Style | G |
| Cap condition 1 [°C] | 0°C sub-cooling38°C condensing5°C evaporating5°C super-heat |
| Cap condition 2 [°C] | 54,4 °C condensing5°C sub-cooling5°C super-heat7,2°C evaporating |
| Suction conn size [in] | 2 1/2 |
| Suction conn size [mm] | 67 mm |
| Max. Leakage [cm³/min] | 30000 cm3/min |
| Vibration test standard | JIS C 60068-2-6 |
| Discharge conn size [in] | 1 3/4 |
| Discharge conn size [mm] | 41.2 mm |
| Evap/cond conn size [in] | 2 1/2 |
| Evap/cond conn size [mm] | 67 |
| Shock resistance standard | JIS C 60068-2-27 |
| Process connection material | Copper |
| Quantity per packing format | 1 pc |
| Valve body temp. max. [°C] | 130 °C |
| Vibration stability [m/s²] | 19.6 m/s2 |
| Cap R407C@Δp:0.1bar(cond1)[kW] | 236.4 kW |
| Cap R407C@Δp:0.1bar(cond2)[kW] | 192.52 kW |
| Cap R407C@Δp:0.2bar(cond1)[kW] | 333.56 kW |
| Cap R407C@Δp:0.2bar(cond2)[kW] | 275.72 kW |
| Cap R410A@Δp:0.1bar(cond1)[kW] | 293.37 kW |
| Cap R410A@Δp:0.1bar(cond2)[kW] | 242.57 kW |
| Cap R410A@Δp:0.2bar(cond1)[kW] | 413.77 kW |
| Cap R410A@Δp:0.2bar(cond2)[kW] | 342.19 kW |
| Medium temperature range [°C] [Max] | 130 °C |
| Medium temperature range [°C] [Min] | -30 °C |
| Medium temperature range [°F] [Max] | 266 °F |
| Medium temperature range [°F] [Min] | -22 °F |
| Ambient temperature range [°C] [Max] | 55 °C |
| Ambient temperature range [°C] [Min] | -20 °C |
| Ambient temperature range [°F] [Max] | 131 °F |
| Ambient temperature range [°F] [Min] | -4 °F |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
