061H5240

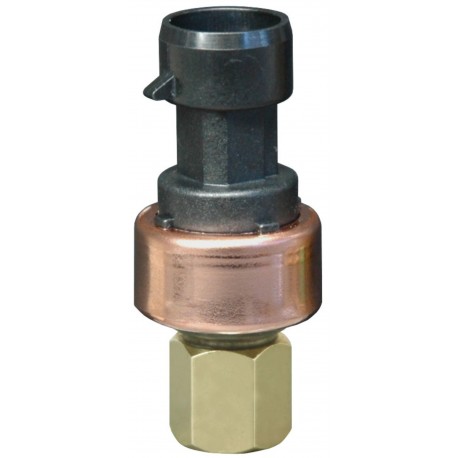

061H5240 DANFOSS REFRIGERATION Pressure transmitter, NSK
$0.00USD
3679 in stock
Key Specifications
EAN ():5702428927260
Type ():NSK
Volume ():0.226 Liter
+ output ():Pin 2
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428927260 |
| Type () | NSK |
| Volume () | 0.226 Liter |
| + output () | Pin 2 |
| + supply () | Pin 1 |
| - common () | Pin 3 |
| Net weight () | 0.048 Kg |
| Gross weight () | 0.048 Kg |
| Refrigerants () | R134aR404AR407CR410AR1234yfR1234ze(E)R32R407HR449BR450AR452BR454BR454CR455AR513AR454A |
| Output signal () | Ratio metric |
| Product group () | Sensors |
| Packing format () | Industrial pack |
| Specification key () | NSK-BE050D-U009 |
| EU RoHS compliance () | Yes |
| Pressure reference () | Gauge (relative) |
| Enclosure rating IP () | IP66 |
| Pressure Male/Female () | Female |
| Electrical connection () | Round Packard Metri-Pack |
| Ratiometric [V] [max] () | 4.5 V |
| Ratiometric [V] [min] () | 0.5 V |
| Supply voltage [V] DC () | 5 V |
| Accuracy, max. [±FS%] () | 2.5 % |
| Pressure connection size () | 1/4 |
| Pressure connection type () | Solder, ODF |
| Product Name Description () | Pressure transmitter |
| Pressure range [bar] [max] () | 50 bar |
| Pressure range [bar] [min] () | 0 bar |
| Quantity per packing format () | 100 pc |
| Electrical conn. Male/Female () | Female |
| Overload pressure max. [bar] () | 55 bar |
| REACH Candidate List substances () | No |
| Medium temperature range [°C] [max] () | 120 °C |
| Medium temperature range [°C] [min] () | -30 °C |
| Ambient temperature range [°C] [max] () | 100 °C |
| Ambient temperature range [°C] [min] () | -30 °C |
| In scope of WEEE and contain batteries () | No |
Product Description
Pressure transmitter, NSK, 0.00 bar - 50.00 bar
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Pressure reference: Gauge (relative), Output signal: Ratio metric, Electrical connection: Round Packard Metri-Pack, Pressure connection type: Solder, ODF, Pressure connection size: 1/4, Specification key: NSK-BE050D-U009
