In Stock Hot Product
061H3247

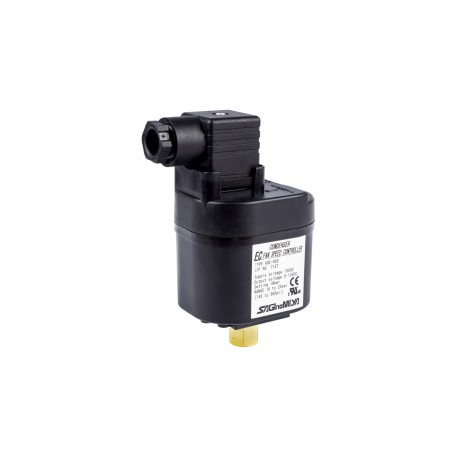

061H3247 DANFOSS REFRIGERATION Fan speed controller
$0.00USD
4961 in stock
Key Specifications
EAN ():5702428531634
Type ():XGE-EC
Volume ():0.735 Liter
Housing ():Closed
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428531634 |
| Type () | XGE-EC |
| Volume () | 0.735 Liter |
| Housing () | Closed |
| Approval () | CEUKCA |
| Net weight () | 0.19 Kg |
| Serviceable () | No |
| Gross weight () | 0.224 Kg |
| Refrigerants () | R410AR407HR449BR450AR513A |
| Product group () | Electronic controllers |
| Packing format () | Multi pack |
| Type designation () | XGE-6S-E |
| Identical product () | 061H3104 |
| P band max. [bar] () | 7 bar |
| P band max. [psi] () | 101 psi |
| EU RoHS compliance () | No - out of scope |
| Enclosure rating IP () | IP65 |
| Product accessories () | No |
| Factory setting [bar] () | 28 bar |
| Supply voltage [V] DC () | 10 V |
| Factory setting [psig] () | 406 psig |
| Product Name Description () | Fan speed controller |
| Pressure connection notes () | with Schrader |
| Pressure inlet conn. std. () | DIN 8906 |
| Pressure inlet conn. type () | Flare |
| Max. Working Pressure [bar] () | 47 bar |
| Quantity per packing format () | 50 pc |
| Max. Working Pressure [psig] () | 681 psig |
| Pressure inlet Internal/Extern () | Internal |
| Pressure inlet conn. size [in] () | 1/4 |
| Regulation range [MPa] Pe [max] () | 3.9 MPa |
| Regulation range [MPa] Pe [min] () | 2.2 MPa |
| Regulation range [bar] Pe [max] () | 39 bar |
| Regulation range [bar] Pe [min] () | 22 bar |
| Regulation range [psig] Pe [max] () | 566 psig |
| Regulation range [psig] Pe [min] () | 319 psig |
| Ambient temperature range [°C] [max] () | 55 °C |
| Ambient temperature range [°C] [min] () | -20 °C |
| Ambient temperature range [°F] [max] () | 131 °F |
| Ambient temperature range [°F] [min] () | -4 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
XGE Fan Speed Controller 6SE
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Factory setting [bar]: 28.00, P band max. [bar]: 7.0, Regulation range [bar] Pe [min]: 22.00, Regulation range [bar] Pe [max]: 39.00, Type designation: XGE-6S-E
