061H3009

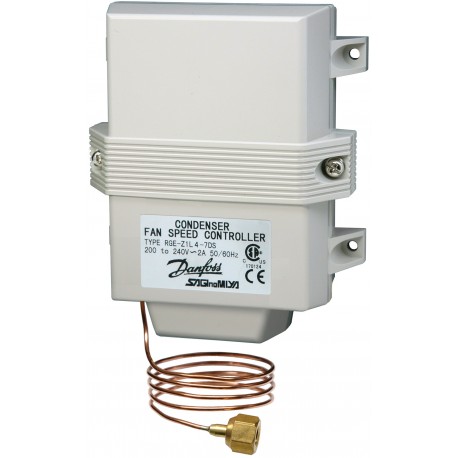

061H3009 DANFOSS REFRIGERATION Fan speed controller
$0.00USD
4297 in stock
Key Specifications
EAN ():5702428275781
Type ():RGE
Volume ():1.648 Liter
Housing ():Closed
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428275781 |
| Type () | RGE |
| Volume () | 1.648 Liter |
| Housing () | Closed |
| Approval () | CEUKCA |
| Net weight () | 0.58 Kilogram |
| Serviceable () | No |
| CE evaluated () | Yes |
| Gross weight () | 0.666 Kilogram |
| Refrigerants () | R134aR22R404AR407CR407HR449BR450AR513A |
| Product group () | Electronic controllers |
| Frequency [Hz] () | 50/60 Hz |
| Packing format () | Multi pack |
| Number of Phases () | 1 |
| Type designation () | RGE-Z1Q4-7DS |
| P band max. [bar] () | 4 bar |
| P band max. [psi] () | 58 psi |
| EU RoHS compliance () | Out of scope |
| UK RoHS compliance () | Out of scope |
| Enclosure rating IP () | IP54 |
| Product accessories () | No |
| Burst pressure [bar] () | 131 bar |
| Burst pressure [psig] () | 1900 psig |
| China RoHS compliance () | Out of scope |
| Factory setting [bar] () | 19 bar |
| Min speed setting [%] () | 35%@60Hz45%@50Hz |
| Factory setting [psig] () | 276 psig |
| Product Name Description () | Fan speed controller |
| Number of terminals [pcs] () | 4 pc |
| Pressure connection notes () | with Schrader |
| Pressure inlet conn. std. () | DIN 8906 |
| Pressure inlet conn. type () | Flare |
| Capillary tube length [in] () | 35.4 in |
| Capillary tube length [mm] () | 900 mm |
| Max. Working Pressure [bar] () | 47 bar |
| Quantity per packing format () | 16 pc |
| Supply voltage [V] AC [max] () | 240 V |
| Supply voltage [V] AC [min] () | 200 V |
| Max. Working Pressure [psig] () | 681 psig |
| Max. current output/phase [A] () | 8 A |
| Pressure inlet Internal/Extern () | Internal |
| Pressure inlet conn. size [in] () | 1/4 |
| REACH Candidate List substances () | No |
| Regulation range [MPa] Pe [max] () | 2.8 MPa |
| Regulation range [MPa] Pe [min] () | 0.8 MPa |
| Regulation range [bar] Pe [max] () | 28 bar |
| Regulation range [bar] Pe [min] () | 8 bar |
| Regulation range [psig] Pe [max] () | 406 psig |
| Regulation range [psig] Pe [min] () | 116 psig |
| Ambient temperature range [°C] [max] () | 55 °C |
| Ambient temperature range [°C] [min] () | -20 °C |
| Ambient temperature range [°F] [max] () | 131 °F |
| Ambient temperature range [°F] [min] () | -4 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
RGE Fan Speed Controller Z1Q4-7DS
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Factory setting [bar]: 19.00, Number of Phases: 1, P band max. [bar]: 4.0, Regulation range [bar] Pe [max]: 28.00, Regulation range [bar] Pe [min]: 8.00, Type designation: RGE-Z1Q4-7DS
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
