061F9808

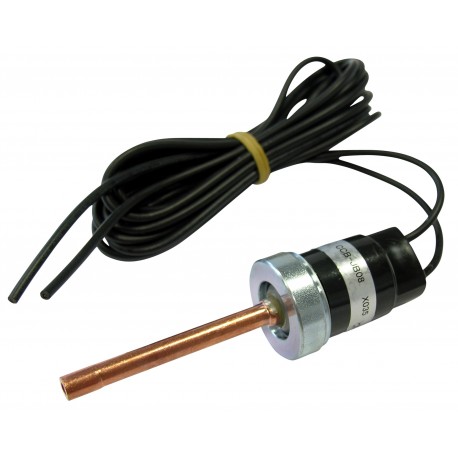

061F9808 DANFOSS REFRIGERATION Cartridge pressure switch
$0.00USD
3508 in stock
Key Specifications
EAN ():5702428258098
Type ():CCB
Volume ():0.22 Liter
Housing ():Epoxy type
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428258098 |
| Type () | CCB |
| Volume () | 0.22 Liter |
| Housing () | Epoxy type |
| Approval () | CETÜVUKCA |
| Mounting () | Vertical +/- 45º |
| Cable type () | AWG18 |
| Net weight () | 0.124 Kg |
| Serviceable () | No |
| Wire colour () | Black |
| Gross weight () | 0.129 Kg |
| Refrigerants () | R744 |
| Product group () | Switches and thermostats |
| Contact rating () | AC=6 A, 250 V |
| Packing format () | Industrial pack |
| Reset function () | Auto |
| Cable length [m] () | 1.5 m |
| Contact function () | SPST(NC) |
| Cable length [in] () | 59.06 in |
| Specification key () | CCB-2UB03W |
| EU RoHS compliance () | No - out of scope |
| Enclosure rating IP () | IP65 |
| Product accessories () | Switches accessories |
| Burst pressure [bar] () | 375 bar |
| Burst pressure [psig] () | 5440 psig |
| Electrical connection () | Cable |
| Oil free refrigerants () | R513AR1234ze(E)R134a |
| Pressure range category () | High pressure |
| Lubricants compatibility () | Oilfree applications |
| Pressure connection type () | Solder, ODM |
| Product Name Description () | Cartridge pressure switch |
| Pressure connection notes () | Cu-tube (tip=7mm) |
| Lower activ. pressure [bar] () | 70 bar |
| Lower activ. pressure [psi] () | 1015 psi |
| Max. Working Pressure [bar] () | 165 bar |
| Quantity per packing format () | 100 pc |
| Higher activ. pressure [bar] () | 100 bar |
| Higher activ. pressure [psi] () | 1450 psi |
| Max. Working Pressure [psig] () | 2393 psig |
| Pressure connection size [mm] () | 6.35 mm |
| Medium temperature range [°C] [max] () | 100 °C |
| Medium temperature range [°C] [min] () | -30 °C |
| Medium temperature range [°F] [max] () | 210 °F |
| Medium temperature range [°F] [min] () | -20 °F |
| Ambient temperature range [°C] [max] () | 85 °C |
| Ambient temperature range [°C] [min] () | -30 °C |
| Ambient temperature range [°F] [max] () | 185 °F |
| Ambient temperature range [°F] [min] () | -20 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
Cartridge pressure switch, CCB, 100.00 bar, 70.00 bar
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Higher activ. pressure [bar]: 100.00, Lower activ. pressure [bar]: 70.00, Reset function: Auto, Contact function: SPST(NC), Pressure connection type: Solder, ODM, Electrical connection: Cable, Enclosure rating IP: IP65
