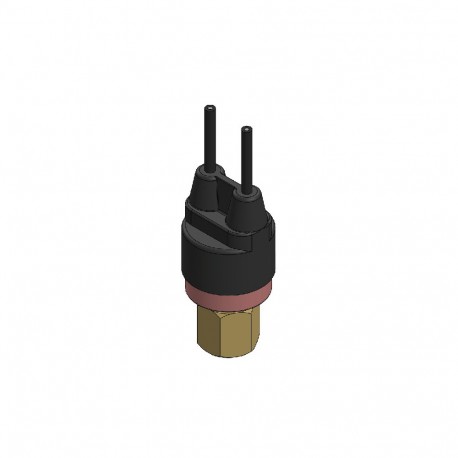

![061F8716 - 061F8716 DANFOSS REFRIGERATION Higher activ. pressure [bar]: 12.40, Lower activ. pressure [bar]: 9.00, Reset..](http://www.baigongbaohao.com/pic/454/783/061f8716.jpg)
In Stock Hot Product
061F8716
061F8716 DANFOSS REFRIGERATION Higher activ. pressure [bar]: 12.40, Lower activ. pressure [bar]: 9.00, Reset..
$0.00USD
4117 in stock
Key Specifications
EAN ():5702428260985
Type ():ACB
Housing ():Regular hot-melt
Approval ():CE 0035TÜVC UL US UL60730
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428260985 |
| Type () | ACB |
| Housing () | Regular hot-melt |
| Approval () | CE 0035TÜVC UL US UL60730 |
| Mounting () | Vertical +/- 45º |
| Cable type () | AWG18 |
| Net weight () | 0.064 Kilogram |
| Serviceable () | No |
| Wire colour () | Black |
| CE evaluated () | Yes |
| Gross weight () | 0.067 Kilogram |
| Refrigerants () | R125R134aR22R404AR407CR407HR410AR438AR448AR449AR452AR513A |
| UL evaluated () | Yes |
| Product group () | Switches and thermostats |
| Contact rating () | AC=6 A, 250 V |
| Packing format () | Industrial pack |
| Reset function () | Auto |
| Cable length [m] () | 1 m |
| Contact function () | SPST(NO) |
| SCIP dossier no. () | 3214dac9-e7f5-4553-abfe-56ba718eab3c |
| Cable length [in] () | 39.37 in |
| Contain batteries () | No |
| Specification key () | ACB-2UA659W |
| EU RoHS compliance () | Yes with exemptions |
| Enclosure rating IP () | IP65 |
| Product accessories () | Switches accessories |
| Burst pressure [bar] () | 200 bar |
| Pressure Male/Female () | Female |
| Burst pressure [psig] () | 2900 psig |
| China RoHS compliance () | Yes exceed limitations |
| Electrical connection () | Cable |
| Oil free refrigerants () | R134aR513A |
| Pressure range category () | High pressure |
| EU RoHS exemption clause () | 6(c) |
| Lubricants compatibility () | Oilfree applications |
| Pressure connection size () | 1/4 in |
| Pressure connection type () | Flare |
| Product Name Description () | Cartridge pressure switch |
| UL approved refrigerants () | R125R134aR22R404AR407CR407HR410AR438AR448AR449AR452AR513A |
| Pressure connection notes () | Deflator |
| SCIP dossier product name () | ACB/LCB, Cartridge pressure switch, flare connection |
| Lower activ. pressure [bar] () | 9 bar |
| Lower activ. pressure [psi] () | 131 psi |
| Max. Working Pressure [bar] () | 45 bar |
| Quantity per packing format () | 100 pc |
| Higher activ. pressure [bar] () | 12.4 bar |
| Higher activ. pressure [psi] () | 180 psi |
| Max. Working Pressure [psig] () | 653 psig |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Medium temperature range [°C] [max] () | 135 °C |
| Medium temperature range [°C] [min] () | -55 °C |
| Medium temperature range [°F] [max] () | 275 °F |
| Medium temperature range [°F] [min] () | -70 °F |
| Ambient temperature range [°C] [max] () | 85 °C |
| Ambient temperature range [°C] [min] () | -30 °C |
| Ambient temperature range [°F] [max] () | 185 °F |
| Ambient temperature range [°F] [min] () | -20 °F |
Product Description
Cartridge pressure switch, ACB, 12.40 bar, 9.00 bar
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Higher activ. pressure [bar]: 12.40, Lower activ. pressure [bar]: 9.00, Reset function: Auto, Contact function: SPST(NO), Pressure connection type: Flare, Pressure connection size: 1/4 in, Electrical connection: Cable, Enclosure rating IP: IP65
