In Stock Hot Product
061F8701

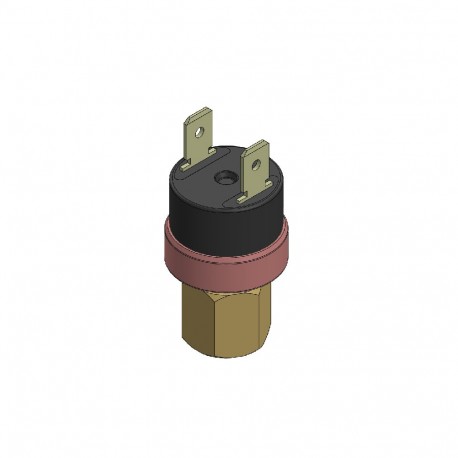

061F8701 DANFOSS REFRIGERATION Cartridge pressure switch ACB-2UB201 I/50
$0.00USD
4841 in stock
Key Specifications
EAN ():5702428261074
Type ():ACB
Volume ():0.407 Liter
Housing ():Regular
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428261074 |
| Type () | ACB |
| Volume () | 0.407 Liter |
| Housing () | Regular |
| Approval () | C UL US UL873CECE 0035PEDTÜVUKCA |
| Mounting () | Vertical +/- 45º |
| Net weight () | 0.033 Kilogram |
| Serviceable () | No |
| CE evaluated () | Yes |
| Gross weight () | 0.044 Kilogram |
| Refrigerants () | R125R134aR22R404AR407CR407HR410AR438AR448AR449AR452AR513A |
| UL evaluated () | Yes |
| Product group () | Switches and thermostats |
| Contact rating () | AC=6 A, 250 V |
| Packing format () | Industrial pack |
| Reset function () | Auto |
| Contact function () | SPST(NC) |
| SCIP dossier no. () | 3214dac9-e7f5-4553-abfe-56ba718eab3c |
| Specification key () | ACB-2UB201 |
| EU RoHS compliance () | Yes with exemptions |
| UK RoHS compliance () | Yes with exemptions |
| Enclosure rating IP () | IP40 |
| Product accessories () | Switches accessories |
| Burst pressure [bar] () | 200 bar |
| Pressure Male/Female () | Female |
| Burst pressure [psig] () | 2900 psig |
| China RoHS compliance () | Yes exceed limitations |
| Electrical connection () | Spade connectors |
| Oil free refrigerants () | R1234ze(E)R134aR513A |
| Pressure range category () | High pressure |
| EU RoHS exemption clause () | 6(c) |
| Lubricants compatibility () | Oilfree applications |
| Pressure connection size () | 1/4 in |
| Pressure connection type () | Flare |
| Product Name Description () | Cartridge pressure switch |
| UK RoHS exemption clause () | 18 |
| UL approved refrigerants () | R125R134aR22R404AR407CR407HR410AR438AR448AR449AR452AR513A |
| Pressure connection notes () | Deflator |
| SCIP dossier product name () | ACB/LCB, Cartridge pressure switch, flare connection |
| Lower activ. pressure [bar] () | 20 bar |
| Lower activ. pressure [psi] () | 290 psi |
| Max. Working Pressure [bar] () | 45 bar |
| Quantity per packing format () | 50 pc |
| Higher activ. pressure [bar] () | 26 bar |
| Higher activ. pressure [psi] () | 377 psi |
| Max. Working Pressure [psig] () | 653 psig |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Medium temperature range [°C] [max] () | 135 °C |
| Medium temperature range [°C] [min] () | -55 °C |
| Medium temperature range [°F] [max] () | 275 °F |
| Medium temperature range [°F] [min] () | -70 °F |
| Ambient temperature range [°C] [max] () | 85 °C |
| Ambient temperature range [°C] [min] () | -30 °C |
| Ambient temperature range [°F] [max] () | 185 °F |
| Ambient temperature range [°F] [min] () | -20 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
Cartridge pressure switch, ACB, 26.00 bar, 20.00 bar
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Higher activ. pressure [bar]: 26.00, Lower activ. pressure [bar]: 20.00, Reset function: Auto, Contact function: SPST(NC), Pressure connection type: Flare, Pressure connection size: 1/4 in, Electrical connection: Spade connectors, Enclosure rating IP: IP40
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
