061F7519

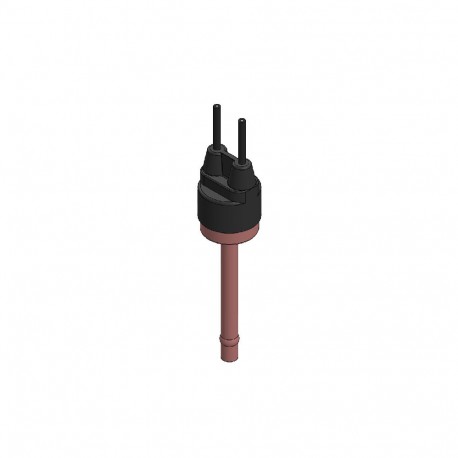

061F7519 DANFOSS REFRIGERATION Cartridge pressure switch
$0.00USD
4197 in stock
Key Specifications
EAN ():5702428264945
Type ():ACB
Volume ():0.4 Liter
Housing ():Regular hot-melt
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428264945 |
| Type () | ACB |
| Volume () | 0.4 Liter |
| Housing () | Regular hot-melt |
| Approval () | C UL US UL873CECE 0035PEDTÜVUKCA |
| Mounting () | Vertical +/- 45º |
| Cable type () | AWG18 |
| Net weight () | 0.058 Kg |
| Serviceable () | No |
| Wire colour () | Black |
| Gross weight () | 0.07 Kg |
| Refrigerants () | R125R134aR22R404AR407CR407HR410AR438AR448AR449AR452AR513A |
| Product group () | Switches and thermostats |
| Contact rating () | AC=6 A, 250 V |
| Packing format () | Industrial pack |
| Reset function () | Auto |
| Cable length [m] () | 1.5 m |
| Contact function () | SPST(NO) |
| SCIP dossier no. () | 079d01cc-2047-493a-94b7-984b80c43a88 |
| Cable length [in] () | 59.06 in |
| Specification key () | ACB-2UB339MW |
| EU RoHS compliance () | Yes with exemptions |
| Enclosure rating IP () | IP65 |
| Product accessories () | Switches accessories |
| Burst pressure [bar] () | 200 bar |
| Burst pressure [psig] () | 2900 psig |
| Electrical connection () | Cable |
| Oil free refrigerants () | R513AR1234ze(E)R134a |
| Pressure range category () | Low pressure |
| Lubricants compatibility () | Oilfree applications |
| Pressure connection size () | 1/4 in |
| Pressure connection type () | Solder, ODM |
| Product Name Description () | Cartridge pressure switch |
| UL approved refrigerants () | R125R134aR22R404AR407CR407HR410AR438AR448AR449AR452AR513A |
| Pressure connection notes () | Cu-tube (tip=3mm) |
| Lower activ. pressure [bar] () | 0.5 bar |
| Lower activ. pressure [psi] () | 7 psi |
| Max. Working Pressure [bar] () | 35 bar |
| Quantity per packing format () | 20 pc |
| Higher activ. pressure [bar] () | 1.5 bar |
| Higher activ. pressure [psi] () | 22 psi |
| Max. Working Pressure [psig] () | 508 psig |
| Pressure connection size [mm] () | 6.35 mm |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Medium temperature range [°C] [max] () | 135 °C |
| Medium temperature range [°C] [min] () | -55 °C |
| Medium temperature range [°F] [max] () | 275 °F |
| Medium temperature range [°F] [min] () | -70 °F |
| Ambient temperature range [°C] [max] () | 85 °C |
| Ambient temperature range [°C] [min] () | -30 °C |
| Ambient temperature range [°F] [max] () | 185 °F |
| Ambient temperature range [°F] [min] () | -20 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
ACB Cartridge Switch 2UA519W I/20
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Higher activ. pressure [bar]: 1.50, Lower activ. pressure [bar]: 0.50, Reset function: Auto, Contact function: SPST(NO), Pressure connection type: Solder, ODM, Pressure connection size: 1/4 in, Electrical connection: Cable, Enclosure rating IP: IP65
