061B809066

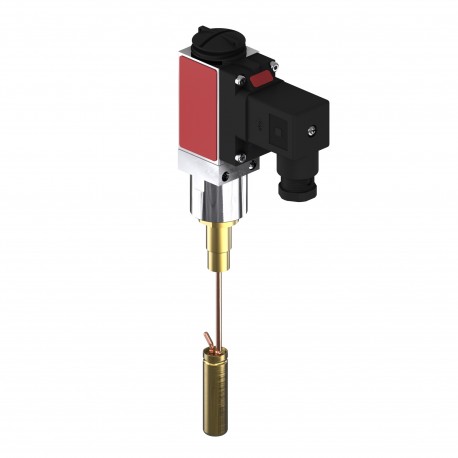

061B809066 DANFOSS CONTROLES INDUSTRIALES Thermostat, MBC 8100
$0.00USD
3133 in stock
Key Specifications
EAN ():5702428518925
Type ():MBC 8100
Volume ():3.4 Liter
Approval ():ABSBVCCCCCSCEDNVEACGLKRSLLC CDC EURO-TYSKLRLVDNKKRINARMRSRoHSRoHS ChinaTYSKUKCA
Supplier Information
DANFOSS INDUSTRIAL AUTOMATION
Products: 1269
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428518925 |
| Type () | MBC 8100 |
| Volume () | 3.4 Liter |
| Approval () | ABSBVCCCCCSCEDNVEACGLKRSLLC CDC EURO-TYSKLRLVDNKKRINARMRSRoHSRoHS ChinaTYSKUKCA |
| Net weight () | 0.224 Kg |
| Charge type () | Adsorption |
| Sensor type () | Rigid sensor |
| Serviceable () | No |
| Alarm Signal () | Rising |
| Gross weight () | 0.591 Kg |
| Product group () | Switches and thermostats |
| Contact rating () | AC15=0.5 A, 250 VDC13=12 W, 125 V |
| Packing format () | Multi pack |
| Reset function () | Auto |
| Contact function () | SPDT |
| SCIP dossier no. () | 78250f8e-5849-44ad-ae3b-a65731351f9b |
| Differential type () | Fixed (max. value) |
| Specification key () | 2611-1A00075 |
| EU RoHS compliance () | No - out of scope |
| Enclosure rating IP () | IP65 |
| Product accessories () | Switches accessories |
| Product description () | Thermostat |
| Differential (FS) [K] () | 6 K |
| Electrical connection () | DIN-plug |
| Sensor pocket material () | Brass |
| Product Name Description () | Thermostat |
| Sensor pocket conn. size () | 1/2 |
| Sensor pocket conn. type () | G |
| Electrical spec. standard () | EN 60947-5 |
| Sensor size (Ø x L) [in] () | 1/2 x 2 in |
| Sensor size (Ø x L) [mm] () | 13 x 50 mm |
| Electrical connection size () | Pg 11 |
| Factory setting (FS) [°C] () | 120 °C |
| Quantity per packing format () | 6 pc |
| Electrical conn. Male/Female () | Female |
| Connection for pocket or hose () | M 18 x 1.5 |
| Max. sensor temperature [°C] () | 250 °C |
| Max. sensor temperature [°F] () | 482 °F |
| Temperature range [°C] [max] () | 150 °C |
| Temperature range [°C] [min] () | 60 °C |
| Temperature range [°F] [max] () | 302 °F |
| Temperature range [°F] [min] () | 140 °F |
| Electrical connection standard () | EN 175301-803-A |
| Sensor pocket conn. length[mm] () | 75 mm |
| Sensor pocket length min. [in] () | 3 in |
| Sensor pocket length min. [mm] () | 75 mm |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Ambient temperature range [°C] [max] () | 70 °C |
| Ambient temperature range [°C] [min] () | -40 °C |
| Ambient temperature range [°F] [max] () | 158 °F |
| Ambient temperature range [°F] [min] () | -40 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Temperature range [°C]: 60 - 150, Reset function: Auto, Contact function: SPDT, Sensor type: Rigid sensor, Enclosure rating IP: IP65
