061B300366

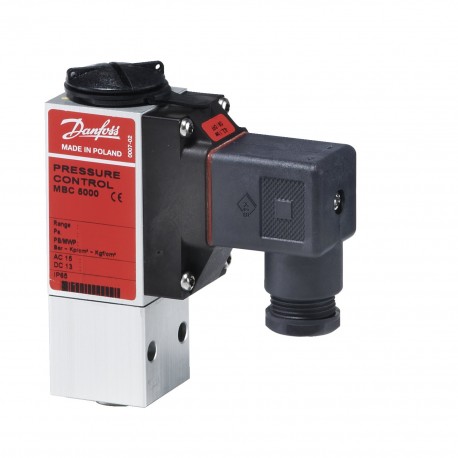

061B300366 DANFOSS CONTROLES INDUSTRIALES Pressure switch
$0.00USD
3887 in stock
Key Specifications
EAN:5702423218455
Approval:CCCCEEAC
Net weight:0.21 Kg
Serviceable:No
Supplier Information
DANFOSS INDUSTRIAL AUTOMATION
Products: 1269
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 5702423218455 |
| Approval | CCCCEEAC |
| Net weight | 0.21 Kg |
| Serviceable | No |
| Gross weight | 0.31 Kg |
| Product name | Pressure switch |
| Product type | MBC 5000 |
| Product Group | Switches and thermostats |
| Contact rating | AC15=0.5 A, 250 V |
| Packing format | Multi pack |
| Contact function | SPDT |
| Specification key | 4241-1DB04 |
| Enclosure rating IP | IP65 |
| Product description | Pressure Switch |
| Burst pressure [bar] | 300 bar |
| Pressure Male/Female | Female |
| Electrical connection | DIN-plug |
| Pressure range category | High pressure |
| Pressure connection size | 1/4 |
| Pressure connection type | G |
| Pressure sensing element | Diaphragm |
| Electrical spec. standard | EN 60947-5 |
| Max. test pressure [psig] | 2176 psig |
| Pressure connection notes | With flange |
| Electrical connection size | Pg 11 |
| Max. Working Pressure [bar] | 150 bar |
| Max. test pressure [bar] Pe | 150 bar |
| Quantity per packing format | 32 pc |
| Electrical conn. Male/Female | Female |
| Max. Working Pressure [psig] | 2175 psig |
| Pressure connection standard | ISO 228-1 |
| Diff.@Max. range setting [bar] | 12 bar |
| Diff.@Min. range setting [bar] | 4 bar |
| Electrical connection standard | EN 175301-803-A |
| Regulation range [MPa] Pe [Max] | 10 MPa |
| Regulation range [MPa] Pe [Min] | 1 MPa |
| Regulation range [bar] Pe [Max] | 100 bar |
| Regulation range [bar] Pe [Min] | 10 bar |
| Ambient temperature range [°C] [Max] | 85 °C |
| Ambient temperature range [°C] [Min] | -10 °C |
| Ambient temperature range [°F] [Max] | 185 °F |
| Ambient temperature range [°F] [Min] | 14 °F |
