061B201066

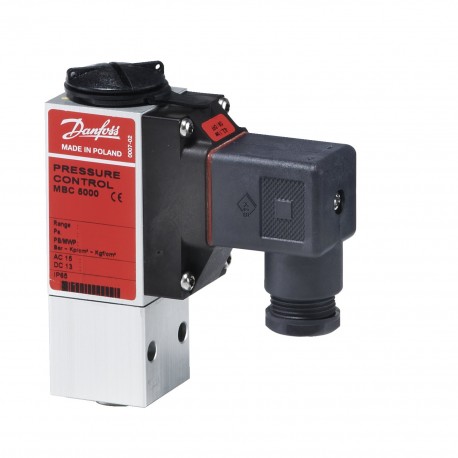

061B201066 DANFOSS CONTROLES INDUSTRIALES Pressure switch
$0.00USD
4679 in stock
Key Specifications
EAN:5702423218417
Approval:CCCCEEAC
Net weight:0.19 Kg
Serviceable:No
Supplier Information
DANFOSS INDUSTRIAL AUTOMATION
Products: 1269
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 5702423218417 |
| Approval | CCCCEEAC |
| Net weight | 0.19 Kg |
| Serviceable | No |
| Gross weight | 0.29 Kg |
| Product name | Pressure switch |
| Product type | MBC 5000 |
| Product Group | Switches and thermostats |
| Contact rating | AC15=0.5 A, 250 V |
| Packing format | Multi pack |
| Contact function | SPDT |
| Specification key | 1211-1CB04 |
| Enclosure rating IP | IP65 |
| Product description | Pressure Switch |
| Burst pressure [bar] | 30 bar |
| Pressure Male/Female | Female |
| Electrical connection | DIN-plug |
| Pressure range category | Low pressure |
| Pressure connection size | 1/4 |
| Pressure connection type | G |
| Pressure sensing element | Bellows |
| Electrical spec. standard | EN 60947-5 |
| Max. test pressure [psig] | 218 psig |
| Electrical connection size | Pg 11 |
| Max. Working Pressure [bar] | 15 bar |
| Max. test pressure [bar] Pe | 15 bar |
| Quantity per packing format | 32 pc |
| Electrical conn. Male/Female | Female |
| Max. Working Pressure [psig] | 220 psig |
| Pressure connection standard | ISO 228-1 |
| Diff.@Max. range setting [bar] | 0.45 bar |
| Diff.@Min. range setting [bar] | 0.3 bar |
| Electrical connection standard | EN 175301-803-A |
| Regulation range [MPa] Pe [Max] | 0.4 MPa |
| Regulation range [MPa] Pe [Min] | -0.02 MPa |
| Regulation range [bar] Pe [Max] | 4 bar |
| Regulation range [bar] Pe [Min] | -0.2 bar |
| Ambient temperature range [°C] [Max] | 85 °C |
| Ambient temperature range [°C] [Min] | -40 °C |
| Ambient temperature range [°F] [Max] | 185 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
