061B129266

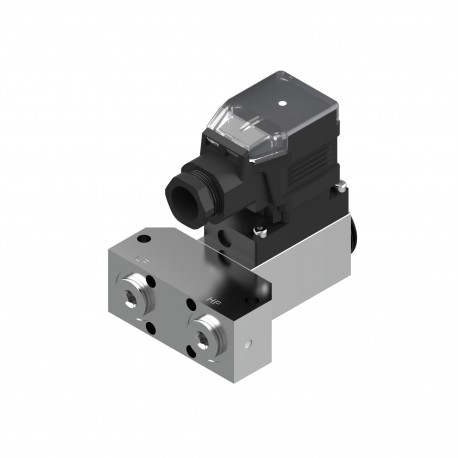

061B129266 DANFOSS CONTROLES INDUSTRIALES Differential pressure switch, MBC 5180
$0.00USD
4862 in stock
Key Specifications
EAN ():5702423255443
Type ():MBC 5180
Volume ():0.952 Liter
Approval ():ABSCCCCCSCEEACGLKRSLLC CDC EURO-TYSKLRLVDNKKRINARoHSRoHS ChinaTYSKUKCA
Supplier Information
DANFOSS INDUSTRIAL AUTOMATION
Products: 1269
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702423255443 |
| Type () | MBC 5180 |
| Volume () | 0.952 Liter |
| Approval () | ABSCCCCCSCEEACGLKRSLLC CDC EURO-TYSKLRLVDNKKRINARoHSRoHS ChinaTYSKUKCA |
| Net weight () | 0.271 Kg |
| Serviceable () | No |
| Alarm Signal () | Rising |
| Gross weight () | 0.391 Kg |
| Product group () | Switches and thermostats |
| Contact rating () | AC15=0.5 A, 250 VDC13=12 W, 125 V |
| Packing format () | Multi pack |
| Reset function () | Auto |
| Contact function () | SPDT |
| SCIP dossier no. () | c9549e84-c103-45b0-86ec-6021ce3385c8 |
| Specification key () | 2031-2DB04 |
| EU RoHS compliance () | No - out of scope |
| Enclosure rating IP () | IP65 |
| Product accessories () | Generic accessories |
| Product description () | Diff. Pressure Switch |
| Burst pressure [bar] () | 90 bar |
| Pressure Male/Female () | Female |
| Electrical connection () | DIN-plug |
| Factory setting [MPa] () | 0.1 MPa |
| Factory setting [bar] () | 1 bar |
| Relay release time [s] () | 0 s |
| Pressure connection size () | 1/4 |
| Pressure connection type () | G |
| Product Name Description () | Differential pressure switch |
| Electrical spec. standard () | EN 60947-5 |
| Max. test pressure [psig] () | 986 psig |
| Pressure connection notes () | With flange |
| Electrical connection size () | Pg 13.5 |
| Max. Working Pressure [bar] () | 45 bar |
| Max. test pressure [bar] Pe () | 68 bar |
| Quantity per packing format () | 10 pc |
| Electrical conn. Male/Female () | Female |
| Max. Working Pressure [psig] () | 653 psig |
| Pressure connection standard () | ISO 228-1 |
| Electrical connection standard () | EN 175301-803-A |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Diff.press.setting range [MPa] [max] () | 0.5 MPa |
| Diff.press.setting range [MPa] [min] () | 0.03 MPa |
| Diff.press.setting range [bar] [max] () | 5 bar |
| Diff.press.setting range [bar] [min] () | 0.3 bar |
| Diff.press.setting range [psi] [max] () | 72.5 psi |
| Diff.press.setting range [psi] [min] () | 4.3 psi |
| Operat. range LP side [bar] Pe [max] () | 30 bar |
| Operat. range LP side [bar] Pe [min] () | 0 bar |
| Operat. range LP side [psig]Pe [max] () | 435 psig |
| Operat. range LP side [psig]Pe [min] () | 0 psig |
| Ambient temperature range [°C] [max] () | 85 °C |
| Ambient temperature range [°C] [min] () | -10 °C |
| Ambient temperature range [°F] [max] () | 185 °F |
| Ambient temperature range [°F] [min] () | 14 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Reset function: Auto, Pressure connection type: G, Pressure connection type: G, Enclosure rating IP: IP65, Max. Working Pressure [bar]: 45.0
