061B127066

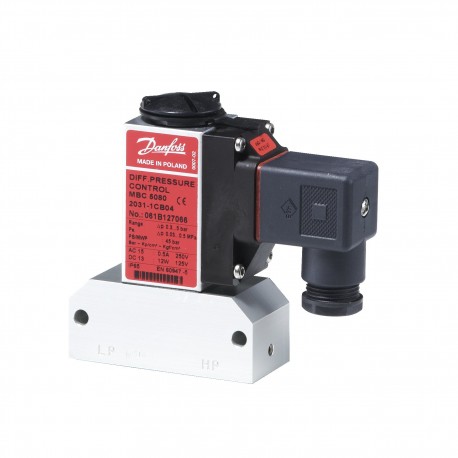

061B127066 DANFOSS CONTROLES INDUSTRIALES Differential pressure switch
$0.00USD
4861 in stock
Key Specifications
EAN:5702423244645
Approval:CCCCEEAC
Net weight:0.25 Kg
Serviceable:No
Supplier Information
DANFOSS INDUSTRIAL AUTOMATION
Products: 1269
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 5702423244645 |
| Approval | CCCCEEAC |
| Net weight | 0.25 Kg |
| Serviceable | No |
| Gross weight | 0.37 Kg |
| Product name | Differential pressure switch |
| Product type | MBC 5080 |
| Product Group | Switches and thermostats |
| Contact rating | AC15=0.5 A, 250 V |
| Packing format | Multi pack |
| Reset function | Auto |
| Contact function | SPDT |
| Specification key | 2031-1CB04 |
| Ammonia application | No |
| Enclosure rating IP | IP65 |
| Product accessories | Generic accessories |
| Product description | Diff. Pressure Switch |
| Burst pressure [bar] | 90 bar |
| Pressure Male/Female | Female |
| Electrical connection | DIN-plug |
| Pressure connection size | 1/4 |
| Pressure connection type | G |
| Electrical spec. standard | EN 60947-5 |
| Max. test pressure [psig] | 986 psig |
| Electrical connection size | Pg 11 |
| Max. Working Pressure [bar] | 45 bar |
| Max. test pressure [bar] Pe | 68 bar |
| Quantity per packing format | 10 pc |
| Electrical conn. Male/Female | Female |
| Max. Working Pressure [psig] | 653 psig |
| Pressure connection standard | ISO 228-1 |
| Electrical connection standard | EN 175301-803-A |
| Diff.press.setting range [MPa] [Max] | 0.5 MPa |
| Diff.press.setting range [MPa] [Min] | 0.03 MPa |
| Diff.press.setting range [bar] [Max] | 5 bar |
| Diff.press.setting range [bar] [Min] | 0.3 bar |
| Diff.press.setting range [psi] [Max] | 72.5 psi |
| Diff.press.setting range [psi] [Min] | 4.3 psi |
| Operat. range LP side [bar] Pe [Max] | 30 bar |
| Operat. range LP side [bar] Pe [Min] | 0 bar |
| Operat. range LP side [psig]Pe [Max] | 435 psig |
| Operat. range LP side [psig]Pe [Min] | 0 psig |
| Ambient temperature range [°C] [Max] | 85 °C |
| Ambient temperature range [°C] [Min] | -10 °C |
| Ambient temperature range [°F] [Max] | 185 °F |
| Ambient temperature range [°F] [Min] | 14 °F |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
