061B008466

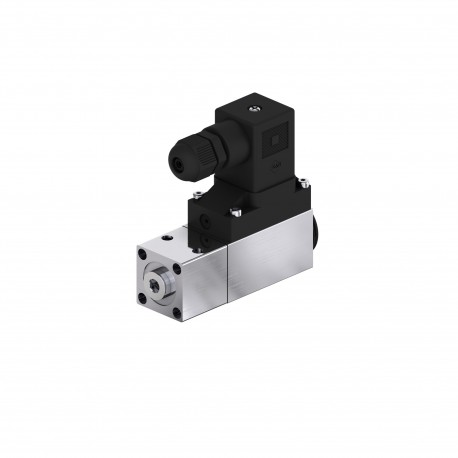

061B008466 DANFOSS CONTROLES INDUSTRIALES Pressure switch, MBC 5100
$0.00USD
4047 in stock
Key Specifications
EAN ():5702428366410
Type ():MBC 5100
Volume ():0.682 Liter
Approval ():ABSBVCCCCCSCECMIMDNVEACGLKRSLLC CDC EURO-TYSKLRLVDNKKRINARMRSRoHSRoHS ChinaTYSKUKCA
Supplier Information
DANFOSS INDUSTRIAL AUTOMATION
Products: 1269
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428366410 |
| Type () | MBC 5100 |
| Volume () | 0.682 Liter |
| Approval () | ABSBVCCCCCSCECMIMDNVEACGLKRSLLC CDC EURO-TYSKLRLVDNKKRINARMRSRoHSRoHS ChinaTYSKUKCA |
| Net weight () | 0.24 Kilogram |
| Serviceable () | No |
| Alarm Signal () | Falling |
| CE evaluated () | Yes |
| Gross weight () | 0.29 Kilogram |
| Product group () | Switches and thermostats |
| Contact rating () | AC15=0.5 A, 250 VDC13=12 W, 125 V |
| Packing format () | Multi pack |
| Reset function () | Auto |
| Contact function () | SPDT |
| SCIP dossier no. () | c9549e84-c103-45b0-86ec-6021ce3385c8 |
| Specification key () | 3221-3DA05 |
| EU RoHS compliance () | Out of scope |
| UK RoHS compliance () | Out of scope |
| Enclosure rating IP () | IP65 |
| Product accessories () | Switches accessories |
| Product description () | Pressure Switch |
| Burst pressure [bar] () | 90 bar |
| Pressure Male/Female () | Female |
| China RoHS compliance () | Yes |
| Electrical connection () | DIN-plug |
| Factory setting [MPa] () | 1.8 MPa |
| Factory setting [bar] () | 18 bar |
| Pressure connection size () | 10 x 1 |
| Pressure connection type () | M |
| Pressure sensing element () | Bellows |
| Product Name Description () | Pressure switch |
| Electrical spec. standard () | EN 60947-5 |
| Max. test pressure [psig] () | 653 psig |
| Pressure connection notes () | With flange |
| Electrical connection size () | Pg 9 |
| Max. Working Pressure [bar] () | 45 bar |
| Max. test pressure [bar] Pe () | 45 bar |
| Quantity per packing format () | 32 pc |
| Electrical conn. Male/Female () | Female |
| Max. Working Pressure [psig] () | 655 psig |
| Pressure connection standard () | ISO 261 |
| Diff.@Max. range setting [bar] () | 2 bar |
| Diff.@Min. range setting [bar] () | 0.9 bar |
| Electrical connection standard () | EN 175301-803-A |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Regulation range [MPa] Pe [max] () | 2 MPa |
| Regulation range [MPa] Pe [min] () | 0.5 MPa |
| Regulation range [bar] Pe [max] () | 20 bar |
| Regulation range [bar] Pe [min] () | 5 bar |
| Ambient temperature range [°C] [max] () | 85 °C |
| Ambient temperature range [°C] [min] () | -40 °C |
| Ambient temperature range [°F] [max] () | 185 °F |
| Ambient temperature range [°F] [min] () | -40 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Regulation range [bar] Pe: 5.00 - 20.00, Reset function: Auto, Pressure connection type: M, Pressure connection size: 10 x 1, Enclosure rating IP: IP65, Max. Working Pressure [bar]: 45.0
