060L5212

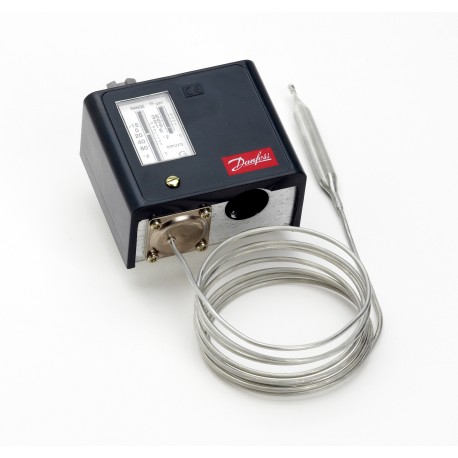

060L5212 DANFOSS REFRIGERATION KPU73 Thermostat M/16
$0.00USD
4487 in stock
Key Specifications
EAN ():5702428075664
Type ():KPU73
Approval ():CELVDRoHSc UL us UL873, CS C22.2
Equipment ():Sensors with double contact
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428075664 |
| Type () | KPU73 |
| Approval () | CELVDRoHSc UL us UL873, CS C22.2 |
| Equipment () | Sensors with double contact |
| Net weight () | 0.74 kg |
| Charge type () | Adsorption |
| Sensor type () | Double contact remote sensor |
| Serviceable () | No |
| Gross weight () | 0.81 kg |
| Product name () | Thermostat |
| Product group () | Switches and thermostats |
| Contact rating () | 120/240 V ac, 24 FLA, 144 LRAPilot Duty: 120/240 V dc 12W |
| Packing format () | Multi pack |
| Parts included () | Angle bracketScrews |
| Reset function () | Auto |
| Amb. Temp. Note () | 80 °C/176 °F for max 120 min |
| Contact function () | SPDT |
| Differential type () | Adjustable |
| Enclosure rating IP () | IP30 |
| Product accessories () | Switches accessories |
| Product description () | Temperature Control |
| Product family name () | KPU |
| Electrical connection () | Hole |
| UL approval file name () | E31024 |
| Electrical conn. comments () | for ½ in male pipe thread |
| Electrical spec. standard () | EN 60947-4/-5 |
| Enclosure rating Nema (~) () | 1 |
| Sensor size (Ø x L) [in] () | 13/32 x 3 3/8 in |
| Sensor size (Ø x L) [mm] () | 10 x 85 mm |
| Capillary tube length [mm] () | 2030 mm |
| EN 60947 wiring properties () | Flex, ferrules: 0.5-1.5 mm2Flex, no ferrules: 0.7-2.5 mm2Solid/stranded: 0.75-2.5 mm2 |
| Electrical connection size () | 7/8 in |
| Quantity per packing format () | 14 pc |
| Max. sensor temperature [°C] () | 80 °C |
| Max. sensor temperature [°F] () | 175 °F |
| Temperature range [°C] [Max] () | 15 °C |
| Temperature range [°C] [Min] () | -26 °C |
| Temperature range [°F] [Max] () | 60 °F |
| Temperature range [°F] [Min] () | -15 °F |
| Cap. tube length fraction [in] () | 80 in |
| EN 60947 electrical properties () | Pollution degree: 3Rated impulse voltage: 4 kV |
| Ambient temperature range [°C] [Max] () | 50 °C |
| Ambient temperature range [°C] [Min] () | -40 °C |
| Ambient temperature range [°F] [Max] () | 122 °F |
| Ambient temperature range [°F] [Min] () | -40 °F |
| Diff. @ Max. range setting[°F] [Max] () | 32 °F |
| Diff. @ Max. range setting[°F] [Min] () | 5 °F |
| Diff. @ Min. range setting[°F] [Max] () | 36 °F |
| Diff. @ Min. range setting[°F] [Min] () | 6 °F |
Product Description
Thermostat, KPU73
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Product name: Thermostat, Type: KPU73, Reset function: Auto, Contact function: SPDT, Sensor type: Double contact remote sensor, Temperature range [°C] [Min]: -26, Temperature range [°C] [Max]: 15
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
