In Stock Hot Product
060L410266

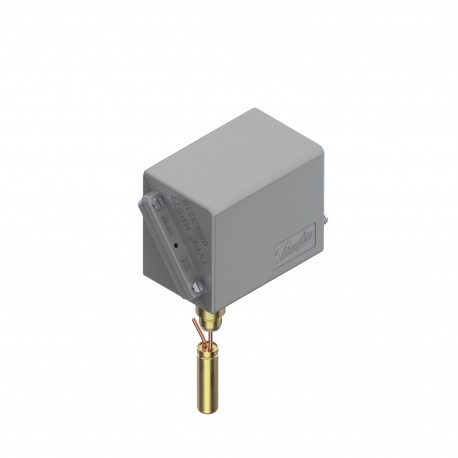

060L410266 DANFOSS REFRIGERATION Thermostat KPS79
$0.00USD
3182 in stock
Key Specifications
EAN ():5702423148813
Type ():KPS79
Volume ():1.874 Liter
Approval ():ABSBVCCCCCSCEDNVEACGLLLC CDC EURO-TYSKLRLVDNKKRINARMRSRoHSRoHS ChinaTYSKULUKCA
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702423148813 |
| Type () | KPS79 |
| Volume () | 1.874 Liter |
| Approval () | ABSBVCCCCCSCEDNVEACGLLLC CDC EURO-TYSKLRLVDNKKRINARMRSRoHSRoHS ChinaTYSKULUKCA |
| Net weight () | 0.8 Kg |
| Charge type () | Adsorption |
| Sensor type () | Rigid sensor |
| Serviceable () | No |
| Gross weight () | 0.842 Kg |
| Product group () | Switches and thermostats |
| Contact rating () | AC15=4 A, 440 VAC1=10 A, 440 VAC3=6 A, 440 VDC13=12 W, 220 Vfor gold 1…30mA, 5...30V |
| Packing format () | Industrial pack |
| Reset function () | Auto |
| Amb. Temp. Note () | 80 °C/176 °F for max 120 min |
| Contact function () | SPDT gold |
| SCIP dossier no. () | 84be8326-1b95-4f87-afb0-90ae08b65f06 |
| Differential type () | Adjustable |
| Identical product () | 060L312166 |
| EU RoHS compliance () | No - out of scope |
| Enclosure rating IP () | IP67 |
| Product accessories () | Switches accessories |
| Product description () | Thermostat |
| Electrical connection () | Screwed cable entry |
| UL approval file name () | E73170 |
| Product Name Description () | Thermostat |
| Electrical conn. comments () | Metal cable gland |
| Electrical spec. standard () | EN 60947-5 |
| Sensor size (Ø x L) [in] () | 1/2 x 2 1/2 in |
| Sensor size (Ø x L) [mm] () | 13 x 63 mm |
| EN 60947 wiring properties () | Flex, ferrules: 0.5-1.5 mm2Flex, no ferrules: 0.7-2.5 mm2Solid/stranded: 0.75-2.5 mm2 |
| Electrical connection size () | Pg 13.5 |
| Quantity per packing format () | 12 pc |
| Electrical conn. Male/Female () | Female |
| Connection for pocket or hose () | M 18 x 1.5 |
| Max. sensor temperature [°C] () | 200 °C |
| Max. sensor temperature [°F] () | 392 °F |
| Temperature range [°C] [max] () | 100 °C |
| Temperature range [°C] [min] () | 50 °C |
| Temperature range [°F] [max] () | 212 °F |
| Temperature range [°F] [min] () | 122 °F |
| EN 60947 electrical properties () | Pollution degree: 3Rated impulse voltage: 4 kVInsulation: 400VShort circuit prot, fuse: 16A |
| Electrical connection standard () | DIN 40430 |
| Sensor pocket length min. [in] () | 3 in |
| Sensor pocket length min. [mm] () | 75 mm |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Diff. @ Min. range setting [K] [max] () | 16 K |
| Diff. @ Min. range setting [K] [min] () | 4 K |
| Ambient temperature range [°C] [max] () | 70 °C |
| Ambient temperature range [°C] [min] () | -40 °C |
| Ambient temperature range [°F] [max] () | 158 °F |
| Ambient temperature range [°F] [min] () | -40 °F |
| Diff. @ Min. range setting[°C] [max] () | 16 °C |
| Diff. @ Min. range setting[°C] [min] () | 4 °C |
| In scope of WEEE and contain batteries () | No |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Temperature range [°C]: 50 - 100, Reset function: Auto, Contact function: SPDT gold, Sensor type: Rigid sensor, Enclosure rating IP: IP67
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
