060L114066

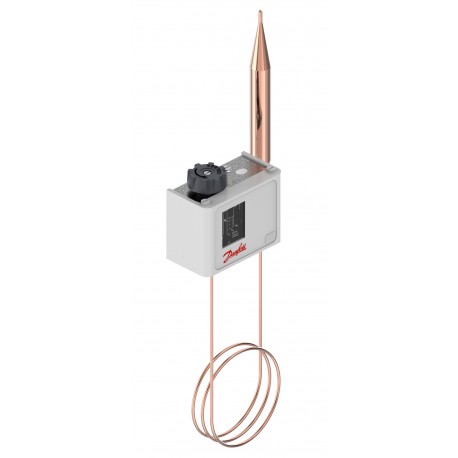

060L114066 DANFOSS REFRIGERATION Thermostat
$0.00USD
4365 in stock
Key Specifications
EAN ():5702428015653
Type ():KP73
Volume ():1.268 Liter
Approval ():BVCCCCECMIMDNVEACGLLLC CDC EURO-TYSKLRLVDPZHRINARMRSRoHS Chinac UL us UL873, CS C22.2UKCA
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428015653 |
| Type () | KP73 |
| Volume () | 1.268 Liter |
| Approval () | BVCCCCECMIMDNVEACGLLLC CDC EURO-TYSKLRLVDPZHRINARMRSRoHS Chinac UL us UL873, CS C22.2UKCA |
| Net weight () | 0.446 Kg |
| Charge type () | Adsorption |
| Sensor type () | Double contact remote sensor |
| Serviceable () | No |
| Gross weight () | 0.526 Kg |
| Product group () | Switches and thermostats |
| Contact rating () | AC15=10 A, 400 VAC1=16 A, 400 VAC3=16 A, 400 VDC13=12 W, 220 VLR=112 A, 400 V |
| Packing format () | Multi pack |
| Reset function () | Auto |
| Amb. Temp. Note () | 80 °C/176 °F for max 120 min |
| Contact function () | SPDT |
| SCIP dossier no. () | be15a44e-80b1-41bd-9578-c8ff1cd7b9f3 |
| Differential type () | Adjustable |
| EU RoHS compliance () | Yes |
| Enclosure rating IP () | IP30 |
| Product accessories () | Switches accessories |
| Product description () | Thermostat |
| Electrical connection () | Rubber cable gland |
| UL approval file name () | E31024 |
| Product Name Description () | Thermostat |
| Electrical spec. standard () | EN 60947-5 |
| Enclosure rating Nema (~) () | 1 |
| Sensor size (Ø x L) [in] () | 5/8 x 6 5/8 in |
| Sensor size (Ø x L) [mm] () | 16 x 170 mm |
| Capillary tube length [mm] () | 3000 mm |
| EN 60947 wiring properties () | Flex, ferrules: 0.5-1.5 mm2Flex, no ferrules: 0.7-2.5 mm2Solid/stranded: 0.75-2.5 mm2 |
| Electrical connection size () | 6-14 mm |
| Quantity per packing format () | 16 pc |
| Max. sensor temperature [°C] () | 55 °C |
| Max. sensor temperature [°F] () | 131 °F |
| Temperature range [°C] [max] () | 15 °C |
| Temperature range [°C] [min] () | -20 °C |
| Temperature range [°F] [max] () | 59 °F |
| Temperature range [°F] [min] () | -4 °F |
| Cap. tube length fraction [in] () | 118 1/8 in |
| EN 60947 electrical properties () | Pollution degree: 3Rated impulse voltage: 4 kVInsulation: 400VShort circuit prot, fuse: 16A |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Diff. @ Max. range setting [K] [max] () | 13 K |
| Diff. @ Max. range setting [K] [min] () | 2 K |
| Diff. @ Min. range setting [K] [max] () | 8 K |
| Diff. @ Min. range setting [K] [min] () | 3.3 K |
| Ambient temperature range [°C] [max] () | 65 °C |
| Ambient temperature range [°C] [min] () | -40 °C |
| Ambient temperature range [°F] [max] () | 150 °F |
| Ambient temperature range [°F] [min] () | -40 °F |
| Diff. @ Max. range setting[°C] [max] () | 13 °C |
| Diff. @ Max. range setting[°C] [min] () | 2 °C |
| Diff. @ Min. range setting[°C] [max] () | 8 °C |
| Diff. @ Min. range setting[°C] [min] () | 3.3 °C |
| In scope of WEEE and contain batteries () | No |
Product Description
KP73 Thermostat M/16
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Temperature range [°C]: -20 - 15, Reset function: Auto, Contact function: SPDT, Sensor type: Double contact remote sensor, Capillary tube length [mm]: 3000, Enclosure rating IP: IP30
