In Stock Hot Product
060H1102

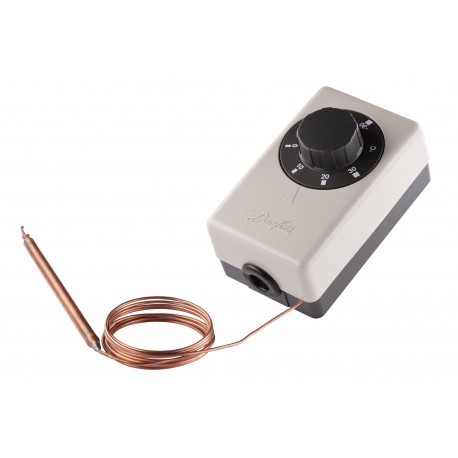

060H1102 DANFOSS REFRIGERATION Thermostat
$0.00USD
3829 in stock
Key Specifications
EAN:5702422060543
Design:Wall mounting
Approval:CEEACRoHSRoHS ChinaTYSK
Net weight:0.1 Kg
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 5702422060543 |
| Design | Wall mounting |
| Approval | CEEACRoHSRoHS ChinaTYSK |
| Net weight | 0.1 Kg |
| Serviceable | No |
| Gross weight | 0.21 Kg |
| Product name | Thermostat |
| Product type | UT 73 |
| Product Group | Switches and thermostats |
| Contact rating | AC1=10 A, 400 VAC1=16 A, 250 VAC3=1.5 A, 400 VAC3=2.5 A, 250 V |
| Packing format | Multi pack |
| Reset function | Auto |
| Mounting method | Wall |
| Contact function | SPDT |
| Differential [°C] | 2.3 °C |
| Differential [°F] | 4.14 °F |
| Enclosure rating IP | IP20 |
| Product accessories | BM/GBC valve accessoriesUT accessories |
| Product family name | UT |
| Differential (FS) [K] | 2.3 K |
| Electrical connection | Clamps Terminal screws |
| Capillary tube material | Copper |
| Sensor size (Ø x L) [in] | 15/64 x 6 19/64 in |
| Sensor size (Ø x L) [mm] | 6 x 160 mm |
| Capillary tube length [in] | 59 in |
| Capillary tube length [mm] | 1500 mm |
| Quantity per packing format | 24 pc |
| Max. sensor temperature [°C] | 90 °C |
| Max. sensor temperature [°F] | 195 °F |
| Temperature range [°C] [Max] | 40 °C |
| Temperature range [°C] [Min] | 0 °C |
| Temperature range [°F] [Max] | 105 °F |
| Temperature range [°F] [Min] | 32 °F |
| Cap. tube length fraction [in] | 59 1/16 in |
| Ambient temperature range [°C] [Max] | 55 °C |
| Ambient temperature range [°C] [Min] | -30 °C |
| Ambient temperature range [°F] [Max] | 130 °F |
| Ambient temperature range [°F] [Min] | -22 °F |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
