060G6324

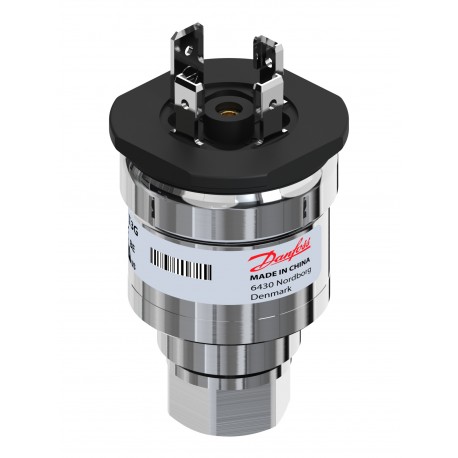

060G6324 DANFOSS REFRIGERATION Pressure transmitter
$0.00USD
4595 in stock
Key Specifications
EAN ():5702428880435
Type ():AKS 32R
Volume ():0.261 Liter
+ output ():Pin 3
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428880435 |
| Type () | AKS 32R |
| Volume () | 0.261 Liter |
| + output () | Pin 3 |
| + supply () | Pin 1 |
| - common () | Pin 2 |
| Approval () | ATEXGOST POCCcUR |
| Net weight () | 0.093 Kg |
| Gross weight () | 0.108 Kg |
| Output signal () | Ratio metric |
| Product group () | Sensors |
| Pulse-snubber () | No |
| Packing format () | Multi pack |
| Flush diaphragm () | No |
| SCIP dossier no. () | 16d2efc6-64f3-4a4e-ae98-a3fd7ce0218d |
| Approval comments () | ATEX Ex ec IIA T4 Gc |
| Approval standard () | 6967179E227388E31024 |
| Specification key () | AKS 32R-K336-A0BF08-0 |
| EU RoHS compliance () | No - out of scope |
| Intrinsically safe () | No |
| Low Clipping level () | 4 |
| Pressure reference () | Sealed gauge |
| Enclosure rating IP () | IP65 |
| High Clipping Level () | 98 |
| Pressure Male/Female () | Female |
| Electrical connection () | Angular connector |
| Accuracy, max. [±FS%] () | 0.8 % |
| Response time max. [ms] () | 4 ms |
| Adj. zero point and span () | No |
| Pressure connection size () | 7/16-20 |
| Pressure connection type () | UNF |
| Product Name Description () | Pressure transmitter |
| Accuracy, typical [±FS%] () | 0.3 % |
| Pressure connection notes () | Flare 1/4 in w/ valvedepressor |
| Electrical connection size () | 4 pin |
| Non-linearity BFSL [±FS%] () | 0.2 % |
| Pressure range [bar] [max] () | 32 bar |
| Pressure range [bar] [min] () | 0 bar |
| Pressure range [psi] [max] () | 464.12 psi |
| Pressure range [psi] [min] () | 0 psi |
| Quantity per packing format () | 20 pc |
| Supply voltage [V] DC [max] () | 5.5 V |
| Supply voltage [V] DC [min] () | 4.5 V |
| Electrical conn. Male/Female () | Male |
| International Article Number () | 5702428880435 |
| Overload pressure max. [bar] () | 55 bar |
| Overload pressure max. [psi] () | 797 psi |
| Pressure connection HEX [mm] () | 17 mm |
| Pressure connection standard () | ISO 8434-1 |
| Electrical connection standard () | EN 175301-803-A |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1)Dodecamethylcyclohexasiloxane (D6, CAS no. 540-97-6) |
| Ratiometric of Vsupply [%] [max] () | 90 % |
| Ratiometric of Vsupply [%] [min] () | 10 % |
| Compensated temp. range [°C] [max] () | 40 °C |
| Compensated temp. range [°C] [min] () | -30 °C |
| Compensated temp. range [°F] [max] () | 104 °F |
| Compensated temp. range [°F] [min] () | -22 °F |
| Medium temperature range [°C] [max] () | 85 °C |
| Medium temperature range [°C] [min] () | -40 °C |
| Medium temperature range [°F] [max] () | 185 °F |
| Medium temperature range [°F] [min] () | -40 °F |
| Ambient temperature range [°C] [max] () | 85 °C |
| Ambient temperature range [°C] [min] () | -40 °C |
| Ambient temperature range [°F] [max] () | 185 °F |
| Ambient temperature range [°F] [min] () | -40 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
Sensor AKS 32R 1/4 Flare, 0-32bar
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Pressure reference: Sealed gauge, Output signal: Ratio metric, Electrical connection: Angular connector, Pressure connection type: UNF, Pressure connection size: 7/16-20, Specification key: AKS 32R-K336-A0BF08-0
