060G6240

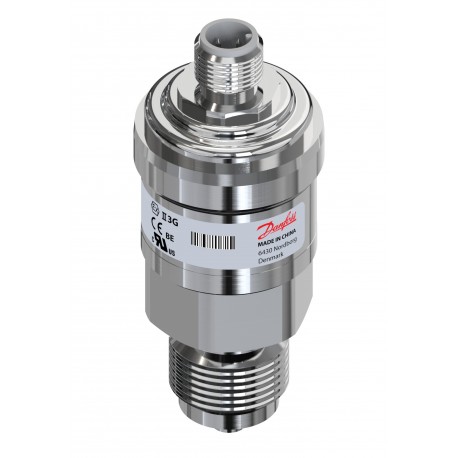

060G6240 DANFOSS CONTROLES INDUSTRIALES Pressure transmitter, MBS 3000
$0.00USD
3321 in stock
Key Specifications
EAN ():5702428831970
Type ():MBS 3000
Volume ():0.256 Liter
+ supply ():Pin 1
Supplier Information
DANFOSS INDUSTRIAL AUTOMATION
Products: 1269
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428831970 |
| Type () | MBS 3000 |
| Volume () | 0.256 Liter |
| + supply () | Pin 1 |
| - common () | Pin 4 |
| Net weight () | 0.164 Kg |
| Gross weight () | 0.18 Kg |
| Output signal () | Current |
| Product group () | Sensors |
| Pulse-snubber () | No |
| Packing format () | Multi pack |
| Flush diaphragm () | No |
| SCIP dossier no. () | 16d2efc6-64f3-4a4e-ae98-a3fd7ce0218d |
| Specification key () | MBS 3000-2631-E3AB08-0 |
| EU RoHS compliance () | Yes |
| Intrinsically safe () | No |
| Low Clipping level () | 3.6 |
| Pressure reference () | Sealed gauge |
| Enclosure rating IP () | IP67 |
| High Clipping Level () | 22.4 |
| Pressure Male/Female () | Male |
| Electrical connection () | M12 x 1 |
| Accuracy, max. [±FS%] () | 1 % |
| Response time max. [ms] () | 4 ms |
| Adj. zero point and span () | No |
| Output signal [mA] [max] () | 20 mA |
| Output signal [mA] [min] () | 4 mA |
| Pressure connection size () | 1/2 |
| Pressure connection type () | G |
| Product Name Description () | Pressure transmitter |
| Accuracy, typical [±FS%] () | 0.5 % |
| Electrical connection size () | 4 pin |
| Non-linearity BFSL [±FS%] () | 0.5 % |
| Pressure range [bar] [max] () | 40 bar |
| Pressure range [bar] [min] () | 0 bar |
| Pressure range [psi] [max] () | 580.2 psi |
| Pressure range [psi] [min] () | 0 psi |
| Quantity per packing format () | 20 pc |
| Supply voltage [V] DC [max] () | 32 V |
| Supply voltage [V] DC [min] () | 9 V |
| Electrical conn. Male/Female () | Male |
| International Article Number () | 5702428831970 |
| Overload pressure max. [bar] () | 240 bar |
| Pressure connection HEX [mm] () | 27 mm |
| Pressure connection standard () | EN 837 |
| Electrical connection standard () | IEC 61076-2-101 |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1)Dodecamethylcyclohexasiloxane (D6, CAS no. 540-97-6) |
| Compensated temp. range [°C] [max] () | 80 °C |
| Compensated temp. range [°C] [min] () | 0 °C |
| Compensated temp. range [°F] [max] () | 176 °F |
| Compensated temp. range [°F] [min] () | 32 °F |
| Medium temperature range [°C] [max] () | 85 °C |
| Medium temperature range [°C] [min] () | -40 °C |
| Medium temperature range [°F] [max] () | 185 °F |
| Medium temperature range [°F] [min] () | -40 °F |
| Ambient temperature range [°C] [max] () | 85 °C |
| Ambient temperature range [°C] [min] () | -25 °C |
| Ambient temperature range [°F] [max] () | 185 °F |
| Ambient temperature range [°F] [min] () | -13 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
Pressure transmitter, MBS 3000, 0.00 bar - 40.00 bar, 0.00 psi - 580.20 psi
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Pressure reference: Sealed gauge, Output signal: Current, Electrical connection: M12 x 1, Pressure connection type: G, Pressure connection size: 1/2, Specification key: MBS 3000-2631-E3AB08-0
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
