060G5980

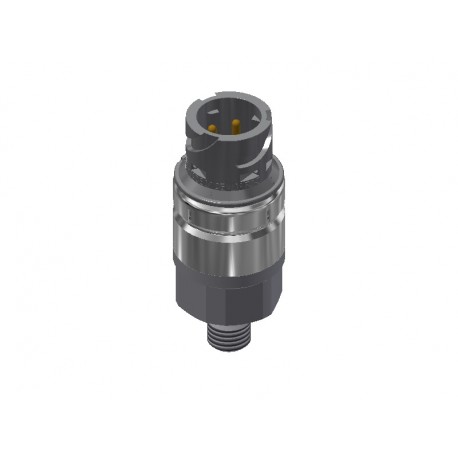

060G5980 DANFOSS CONTROLES INDUSTRIALES Pressure transmitter, MBS 3300
$0.00USD
3418 in stock
Key Specifications
EAN ():5702423301133
Type ():MBS 3300
Volume ():0.235 Liter
+ supply ():Pin 1
Supplier Information
DANFOSS INDUSTRIAL AUTOMATION
Products: 1269
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702423301133 |
| Type () | MBS 3300 |
| Volume () | 0.235 Liter |
| + supply () | Pin 1 |
| - common () | Pin 2 |
| Approval () | ATEX |
| Net weight () | 0.119 Kg |
| Gross weight () | 0.137 Kg |
| Output signal () | Current |
| Product group () | Sensors |
| Pulse-snubber () | No |
| Packing format () | Multi pack |
| Flush diaphragm () | No |
| SCIP dossier no. () | 16d2efc6-64f3-4a4e-ae98-a3fd7ce0218d |
| Approval comments () | ATEX Ex ec IIA T4 Gc |
| Specification key () | MBS 3300-C221-E8FA20-1 |
| EU RoHS compliance () | Yes |
| Intrinsically safe () | No |
| Low Clipping level () | 3.6 |
| Pressure reference () | Absolute |
| Enclosure rating IP () | IP67 |
| High Clipping Level () | 22.4 |
| Pressure Male/Female () | Male |
| Electrical connection () | Bayonet |
| Accuracy, max. [±FS%] () | 1 % |
| Response time max. [ms] () | 4 ms |
| Adj. zero point and span () | No |
| Output signal [mA] [max] () | 20 mA |
| Output signal [mA] [min] () | 4 mA |
| Pressure connection size () | 12 x 1.5 |
| Pressure connection type () | M |
| Product Name Description () | Pressure transmitter |
| Accuracy, typical [±FS%] () | 0.5 % |
| Electrical conn. comments () | A1-3.1-AU Ø31- Black |
| Electrical connection size () | 3 pin |
| Non-linearity BFSL [±FS%] () | 0.2 % |
| Pressure range [bar] [max] () | 11 bar |
| Pressure range [bar] [min] () | 0 bar |
| Pressure range [psi] [max] () | 159.54 psi |
| Pressure range [psi] [min] () | 0 psi |
| Quantity per packing format () | 20 pc |
| Supply voltage [V] DC [max] () | 32 V |
| Supply voltage [V] DC [min] () | 9 V |
| Electrical conn. Male/Female () | Male |
| International Article Number () | 5702423301133 |
| Overload pressure max. [bar] () | 66 bar |
| Overload pressure max. [psi] () | 957 psi |
| Pressure connection HEX [mm] () | 27 mm |
| Pressure connection standard () | DIN 3852-EISO 9974-2 (Form E) |
| Electrical connection standard () | ISO 15170 |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1)Dodecamethylcyclohexasiloxane (D6, CAS no. 540-97-6) |
| Compensated temp. range [°C] [max] () | 100 °C |
| Compensated temp. range [°C] [min] () | 0 °C |
| Compensated temp. range [°F] [max] () | 212 °F |
| Compensated temp. range [°F] [min] () | 32 °F |
| Medium temperature range [°C] [max] () | 125 °C |
| Medium temperature range [°C] [min] () | -20 °C |
| Medium temperature range [°F] [max] () | 257 °F |
| Medium temperature range [°F] [min] () | -4 °F |
| Ambient temperature range [°C] [max] () | 100 °C |
| Ambient temperature range [°C] [min] () | -40 °C |
| Ambient temperature range [°F] [max] () | 212 °F |
| Ambient temperature range [°F] [min] () | -40 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
Pressure transmitter, MBS 3300, 0.00 bar - 11.00 bar, 0.00 psi - 159.54 psi
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Pressure reference: Absolute, Output signal: Current, Electrical connection: Bayonet, Pressure connection type: M, Pressure connection size: 12 x 1.5, Specification key: MBS 3300-C221-E8FA20-1
