060G5864

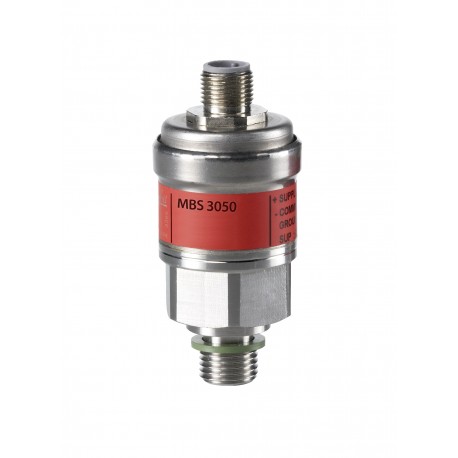

060G5864 DANFOSS CONTROLES INDUSTRIALES Pressure transmitter, MBS 3050
$0.00USD
3791 in stock
Key Specifications
EAN:5702423290154
+ supply:Pin 1
- common:Pin 4
Net weight:0.14 Kg
Supplier Information
DANFOSS INDUSTRIAL AUTOMATION
Products: 1269
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 5702423290154 |
| + supply | Pin 1 |
| - common | Pin 4 |
| Net weight | 0.14 Kg |
| Gross weight | 0.15 Kg |
| Product name | Pressure transmitter |
| Product type | MBS 3050 |
| Product Group | Sensors |
| Pulse-snubber | Yes |
| Packing format | Multi pack |
| Flush diaphragm | No |
| Specification key | MBS 3050-2411-E3GB04-2 |
| Intrinsically safe | No |
| Enclosure rating IP | IP67 |
| Pressure Male/Female | Male |
| Electrical connection | M12 x 1 |
| Pressure unit reference | Gauge (relative) |
| Response time max. [ms] | 4 ms |
| Adj. zero point and span | No |
| Output signal [mA] [Max] | 20 mA |
| Output signal [mA] [Min] | 4 mA |
| Pressure connection size | 1/4 |
| Pressure connection type | G |
| Electrical connection size | 4 pin |
| Pressure range [bar] [Max] | 25 bar |
| Pressure range [bar] [Min] | 0 bar |
| Pressure range [psi] [Max] | 362.59 psi |
| Pressure range [psi] [Min] | 0 psi |
| Non-linearity BFSL ±FS [%] | 0.2 % |
| Quantity per packing format | 20 pc |
| Supply voltage [V] DC [Max] | 32 V |
| Supply voltage [V] DC [Min] | 9 V |
| Electrical conn. Male/Female | Male |
| Overload pressure max. [bar] | 150 bar |
| Pressure connection HEX [mm] | 27 mm |
| Pressure connection standard | DIN 3852-E |
| Electrical connection standard | EN 60947-5-2 |
| Compensated temp. range [°C] [Max] | 80 °C |
| Compensated temp. range [°C] [Min] | 0 °C |
| Compensated temp. range [°F] [Max] | 176 °F |
| Compensated temp. range [°F] [Min] | 32 °F |
| Medium temperature range [°C] [Max] | 85 °C |
| Medium temperature range [°C] [Min] | -40 °C |
| Medium temperature range [°F] [Max] | 185 °F |
| Medium temperature range [°F] [Min] | -40 °F |
| Ambient temperature range [°C] [Max] | 85 °C |
| Ambient temperature range [°C] [Min] | -25 °C |
| Ambient temperature range [°F] [Max] | 185 °F |
| Ambient temperature range [°F] [Min] | -13 °F |
Product Description
Pressure Transmitter, MBS 3050, 0.00 bar - 25.00 bar, 0.00 psi - 362.50 psi
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
