060G3717

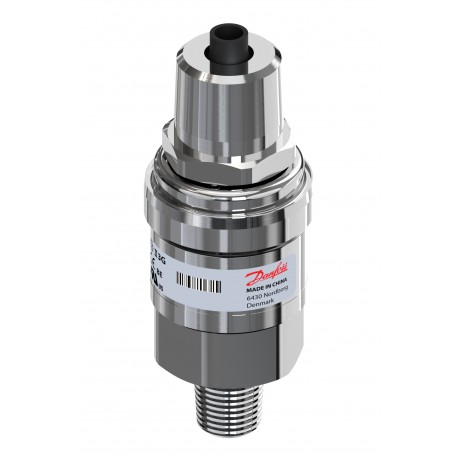

060G3717 DANFOSS REFRIGERATION Pressure transmitter
$0.00USD
4510 in stock
Key Specifications
EAN ():5702423193998
Type ():AKS 3000
Volume ():1.33 Liter
+ supply ():Brown
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702423193998 |
| Type () | AKS 3000 |
| Volume () | 1.33 Liter |
| + supply () | Brown |
| - common () | Black |
| Approval () | ATEXGOST POCCcUR |
| Net weight () | 0.269 Kilogram |
| EEE category () | 5 small equipment (any external dimension50 cm) |
| Gross weight () | 0.313 Kilogram |
| Output signal () | Current |
| Product group () | Sensors |
| Pulse-snubber () | No |
| Packing format () | Multi pack |
| Flush diaphragm () | No |
| Cable length [m] () | 2 m |
| In scope of WEEE () | Yes |
| SCIP dossier no. () | 442fa760-b631-4ddb-a979-55b604269353 |
| Approval comments () | ATEX Ex ec IIA T4 Gc |
| Approval standard () | 6967179E227388E31024 |
| Cable length [in] () | 79 in |
| Specification key () | AKS 3000-N831-DAEC04-0 |
| EU RoHS compliance () | Out of scope |
| Intrinsically safe () | No |
| Low Clipping level () | 3.6 |
| Pressure reference () | Sealed gauge |
| UK RoHS compliance () | Out of scope |
| Enclosure rating IP () | IP67 |
| High Clipping Level () | 22.4 |
| Pressure Male/Female () | Male |
| China RoHS compliance () | Out of scope |
| Electrical connection () | Cable |
| Accuracy, max. [±FS%] () | 2 % |
| Response time max. [ms] () | 4 ms |
| Adj. zero point and span () | No |
| Output signal [mA] [max] () | 20 mA |
| Output signal [mA] [min] () | 4 mA |
| Pressure connection size () | 1/4-18 |
| Pressure connection type () | NPT |
| Product Name Description () | Pressure transmitter |
| Accuracy, typical [±FS%] () | 1 % |
| Electrical conn. comments () | Screened + Adaptor |
| SCIP dossier product name () | Sensor AKS 3000 |
| Non-linearity BFSL [±FS%] () | 0.5 % |
| Pressure range [bar] [max] () | 10 bar |
| Pressure range [bar] [min] () | -1 bar |
| Pressure range [psi] [max] () | 142 psi |
| Pressure range [psi] [min] () | -14.5 psi |
| Quantity per packing format () | 8 pc |
| Supply voltage [V] DC [max] () | 32 V |
| Supply voltage [V] DC [min] () | 9 V |
| International Article Number () | 5702423193998 |
| Pressure connection standard () | ANSI/ASME B1.20.1 |
| Overload press. max. [kg/cm2] () | 33 kg/cm² |
| Pressure range [kg/cm2] [max] () | 10 kg/cm² |
| Pressure range [kg/cm2] [min] () | -1 kg/cm² |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Compensated temp. range [°C] [max] () | 40 °C |
| Compensated temp. range [°C] [min] () | -30 °C |
| Compensated temp. range [°F] [max] () | 104 °F |
| Compensated temp. range [°F] [min] () | -22 °F |
| Medium temperature range [°C] [max] () | 85 °C |
| Medium temperature range [°C] [min] () | -40 °C |
| Medium temperature range [°F] [max] () | 185 °F |
| Medium temperature range [°F] [min] () | -40 °F |
| Ambient temperature range [°C] [max] () | 85 °C |
| Ambient temperature range [°C] [min] () | -40 °C |
| Ambient temperature range [°F] [max] () | 185 °F |
| Ambient temperature range [°F] [min] () | -40 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
Sensor AKS 3000 1/4 NPT, -1-10 kg/cm3
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Pressure reference: Sealed gauge, Output signal: Current, Electrical connection: Cable, Pressure connection type: NPT, Pressure connection size: 1/4-18, Specification key: AKS 3000-N831-DAEC04-0
