060G3050

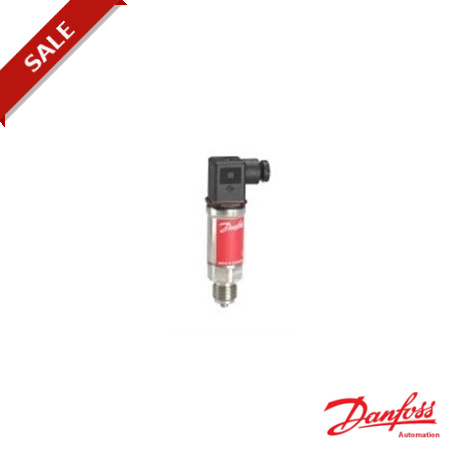

060G3050 DANFOSS CONTROLES INDUSTRIALES Type: MBS 32, Pressure connection size: 1/2, Pressure connection typ..
$0.00USD
4586 in stock
Key Specifications
EAN:5702423062829
+ output:Pin 3
+ supply:Pin 1
- common:Pin 2
Supplier Information
DANFOSS INDUSTRIAL AUTOMATION
Products: 1269
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 5702423062829 |
| + output | Pin 3 |
| + supply | Pin 1 |
| - common | Pin 2 |
| Net weight | 0.25 Kg |
| Gross weight | 0.25 Kg |
| Product type | MBS 32 |
| Pulse-snubber | No |
| Packing format | Multi pack |
| Flush diaphragm | No |
| Specification key | MBS 32-1225-1AB08 |
| Intrinsically safe | No |
| Enclosure rating IP | IP65 |
| Pressure Male/Female | Male |
| Output signal [V] [Max] | 10 V |
| Output signal [V] [Min] | 0 V |
| Pressure unit reference | Absolute |
| Response time max. [ms] | 4 ms |
| Adj. zero point and span | No |
| Pressure connection size | 1/2 |
| Pressure connection type | G |
| Supply current max. [mA] | 8 mA |
| Accuracy, max. +/- FS [%] | 0.8 % |
| Electrical connection size | Pg 9 |
| Pressure range [bar] [Max] | 1.6 bar |
| Pressure range [bar] [Min] | 0 bar |
| Pressure range [psi] [Max] | 23.21 psi |
| Pressure range [psi] [Min] | 0 psi |
| Non-linearity BFSL ±FS [%] | 0.2 % |
| Quantity per packing format | 14 pc |
| Supply voltage [V] DC [Max] | 30 V |
| Supply voltage [V] DC [Min] | 15 V |
| Accuracy, typical +/- FS [%] | 0.3 % |
| Electrical conn. Male/Female | Male and Female |
| Overload pressure max. [bar] | 8 bar |
| Overload pressure max. [kPa] | 800 kPa |
| Pressure connection HEX [mm] | 27 mm |
| Pressure connection standard | EN 837 |
| Electrical connection standard | EN 175301-803-A |
| Compensated temp. range [°C] [Max] | 80 °C |
| Compensated temp. range [°C] [Min] | 0 °C |
| Compensated temp. range [°F] [Max] | 176 °F |
| Compensated temp. range [°F] [Min] | 32 °F |
| Medium temperature range [°C] [Max] | 85 °C |
| Medium temperature range [°C] [Min] | -40 °C |
| Medium temperature range [°F] [Max] | 185 °F |
| Medium temperature range [°F] [Min] | -40 °F |
| Ambient temperature range [°C] [Max] | 85 °C |
| Ambient temperature range [°C] [Min] | -40 °C |
| Ambient temperature range [°F] [Max] | 185 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
