060B017066

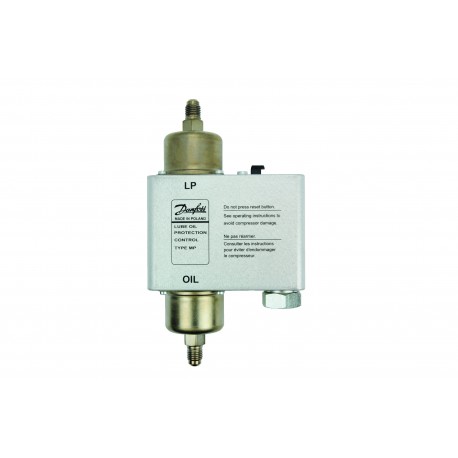

060B017066 DANFOSS REFRIGERATION Differential pressure switch
$0.00USD
4135 in stock
Key Specifications
EAN:5702428365505
Approval:CCCCEEACGLLVDRINARoHSRoHS ChinaTYSK
Equipment:Thermal time relay
Adjustment:Cut out for falling pressure
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 5702428365505 |
| Approval | CCCCEEACGLLVDRINARoHSRoHS ChinaTYSK |
| Equipment | Thermal time relay |
| Adjustment | Cut out for falling pressure |
| Net weight | 0.66 Kg |
| Serviceable | No |
| Gross weight | 0.75 Kg |
| Product name | Differential pressure switch |
| Product type | MP55 |
| Refrigerants | R11R113R12R124R134aR22R404AR407AR407CR407FR407HR422BR422DR438AR448AR449AR450AR452AR507CR513A |
| Product Group | Switches and thermostats |
| Contact rating | AC15=2 A, 250 VDC13=0.2 A, 250 V |
| Packing format | Multi pack |
| Reset function | Manual Min |
| Amb. Temp. Note | Bellows max 100 °C/212 °F |
| Contact function | SPDT |
| Identical product | 060B101466 |
| Ammonia application | No |
| Enclosure rating IP | IP20 |
| Product accessories | Generic accessories |
| Product description | Diff. Pressure Switch |
| Product family name | MP |
| Pressure Male/Female | Male |
| Electrical connection | Screwed cable entry |
| Factory setting [bar] | 0.65 bar |
| Factory setting [psig] | 9 psig |
| Relay release time [s] | 45 " |
| Pressure connection size | 1/4 in |
| Pressure connection type | Flare |
| Electrical spec. standard | EN 60947-5 |
| Max. test pressure [psig] | 319 psig |
| Contact differential [bar] | 0.2 bar |
| EN 60947 wiring properties | Flex, ferrules: 0.2-1.0 mm2Flex, no ferrules: 0.2-1.5 mm2Solid/stranded: 0.2-1.5 mm2 |
| Electrical connection size | Pg 13.5 |
| Max. Working Pressure [bar] | 17 bar |
| Max. test pressure [bar] Pe | 22 bar |
| Quantity per packing format | 21 pc |
| Electrical conn. Male/Female | Female |
| Max. Working Pressure [psig] | 245 psig |
| Pressure connection standard | DIN 8906 |
| EN 60947 electrical properties | Insulation: 250VPollution degree: 3Rated impulse voltage: 4 kVShort circuit prot, fuse: 2A |
| Electrical connection standard | DIN 40430 |
| Diff.press.setting range [MPa] [Max] | 0.45 MPa |
| Diff.press.setting range [MPa] [Min] | 0.03 MPa |
| Diff.press.setting range [bar] [Max] | 4.5 bar |
| Diff.press.setting range [bar] [Min] | 0.3 bar |
| Diff.press.setting range [psi] [Max] | 65 psi |
| Diff.press.setting range [psi] [Min] | 4.3 psi |
| Operat. range LP side [bar] Pe [Max] | 12 bar |
| Operat. range LP side [bar] Pe [Min] | -1 bar |
| Operat. range LP side [psig]Pe [Max] | 175 psig |
| Operat. range LP side [psig]Pe [Min] | -15 psig |
| Ambient temperature range [°C] [Max] | 60 °C |
| Ambient temperature range [°C] [Min] | -40 °C |
| Ambient temperature range [°F] [Max] | 140 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
