In Stock Hot Product
060-5231

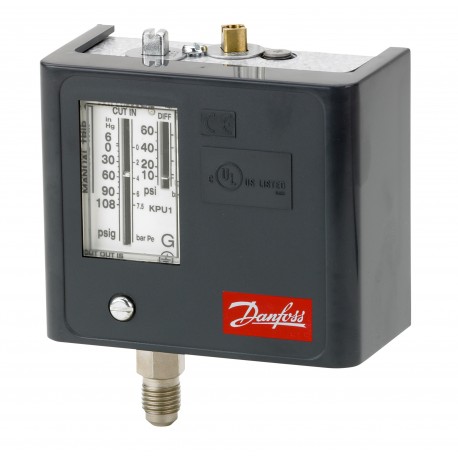

060-5231 DANFOSS REFRIGERATION Pressure switch
$0.00USD
3210 in stock
Key Specifications
EAN ():5702428063609
Type ():KPU1
Volume ():0.832 Liter
Approval ():CELVDRoHSUKCAc UL us UL873, CS C22.2
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428063609 |
| Type () | KPU1 |
| Volume () | 0.832 Liter |
| Approval () | CELVDRoHSUKCAc UL us UL873, CS C22.2 |
| Net weight () | 0.645 Kilogram |
| Serviceable () | No |
| CE evaluated () | Yes |
| Gross weight () | 0.68 Kilogram |
| Refrigerants () | R113R124R134aR22R404AR407AR407CR407FR407HR422BR422DR438AR448AR449AR449BR450AR452AR507AR513AR515B |
| UL evaluated () | Yes |
| Product group () | Switches and thermostats |
| Contact rating () | 144 A, 240 V AC24 A, 240 V acDC=12 W pilot dutyFLA=24 A, 120 V acLRA = 144 A, 120 V ac |
| Packing format () | Multi pack |
| Reset function () | Auto |
| Amb. Temp. Note () | 80 °C/176 °F for max 120 min |
| Application note () | Not applicable for liquid line |
| Contact function () | SPDT |
| Regulation range () | 6 inHg - 108 psig |
| EU RoHS compliance () | Yes |
| UK RoHS compliance () | Out of scope |
| Enclosure rating IP () | IP30 |
| Product accessories () | Switches accessories |
| Product description () | Low Pressure Control |
| Pressure Male/Female () | Male |
| China RoHS compliance () | Out of scope |
| Electrical connection () | Hole |
| Oil free refrigerants () | R134aR513AR515B |
| UL approval file name () | E31024 |
| Differential [bar] [max] () | 4 bar |
| Differential [bar] [min] () | 0.7 bar |
| Differential [psi] [max] () | 60 psi |
| Differential [psi] [min] () | 10 psi |
| EU RoHS exemption clause () | No |
| Lubricants compatibility () | Oilfree applications |
| Pressure connection size () | 1/4 |
| Pressure connection type () | Flare |
| Pressure sensing element () | Bellows |
| Product Name Description () | Pressure switch |
| UL approved refrigerants () | R113R124R134aR22R404AR407AR407CR407FR407HR422BR422DR438AR448AR449AR449BR450AR452AR507AR513AR515B |
| Electrical conn. comments () | for ½ in male pipe thread |
| Enclosure rating Nema (~) () | 1 |
| Max. test pressure [psig] () | 290 psig |
| EN 60947 wiring properties () | Flex, ferrules: 0.5-1.5 mm2Flex, no ferrules: 0.7-2.5 mm2Solid/stranded: 0.75-2.5 mm2 |
| Electrical connection size () | 7/8 in |
| Max. Working Pressure [bar] () | 17 bar |
| Max. test pressure [bar] Pe () | 20 bar |
| Quantity per packing format () | 14 pc |
| Max. Working Pressure [psig] () | 250 psig |
| Pressure connection standard () | DIN 8906 |
| EN 60947 electrical properties () | Insulation: 400VPollution degree: 3Rated impulse voltage: 4 kVShort circuit prot, fuse: 16A |
| REACH Candidate List substances () | No |
| Regulation range [bar] Pe [max] () | 7.5 bar |
| Regulation range [bar] Pe [min] () | -0.2 bar |
| Ambient temperature range [°C] [max] () | 50 °C |
| Ambient temperature range [°C] [min] () | -40 °C |
| Ambient temperature range [°F] [max] () | 122 °F |
| Ambient temperature range [°F] [min] () | -40 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
KPU1 Pressure Switch M/14
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Regulation range [bar] Pe: -0.20 - 7.50, Differential [bar]: 0.70 - 4.00, Contact function: SPDT, Reset function: Auto, Pressure connection type: Flare, Pressure connection size: 1/4, Pressure Male/Female: Male, Enclosure rating IP: IP30, Max. Working Pressure [bar]: 17.0
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
