060-509466

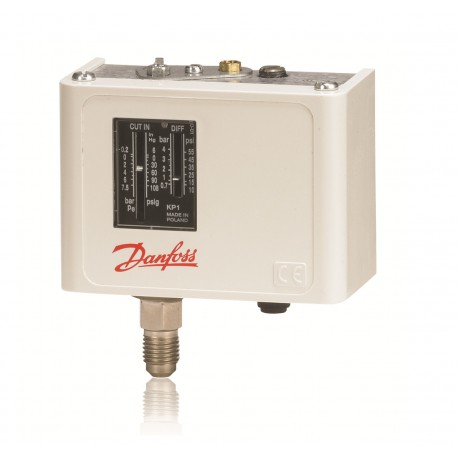

060-509466 DANFOSS REFRIGERATION Pressure switch, KP1
$0.00USD
3465 in stock
Key Specifications
EAN ():5702428012423
Type ():KP1
Volume ():0.562 Liter
Approval ():BVCCCCECMIMDNVEACGLLLC CDC EURO-TYSKLRLVDPEDPZHRINARMRSRoHS ChinaUKCAc UL us UL353, CS C22.2c UL us UL873, CS C22.2
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428012423 |
| Type () | KP1 |
| Volume () | 0.562 Liter |
| Approval () | BVCCCCECMIMDNVEACGLLLC CDC EURO-TYSKLRLVDPEDPZHRINARMRSRoHS ChinaUKCAc UL us UL353, CS C22.2c UL us UL873, CS C22.2 |
| Net weight () | 0.286 Kilogram |
| Fluid Group () | 1 |
| Serviceable () | No |
| CE evaluated () | Yes |
| EEE category () | 5 small equipment (any external dimension50 cm) |
| Gross weight () | 0.321 Kilogram |
| PED category () | IV |
| Refrigerants () | R113R1234yfR1234yzR1234ze(E)R124R134aR22R404AR407AR407CR407FR407HR422BR422DR438AR448AR449AR449BR450AR452AR454CR455AR507AR513AR515B |
| UL evaluated () | Yes |
| Product group () | Switches and thermostats |
| Contact rating () | AC15=10 A, 400 VAC1=16 A, 400 VAC3=16 A, 400 VDC13=12 W, 220 VLR=112 A, 400 V |
| Packing format () | Industrial pack |
| Reset function () | Auto |
| Amb. Temp. Note () | 80 °C/176 °F for max 120 min |
| Application note () | Not applicable for liquid line |
| Contact function () | SPDT |
| In scope of WEEE () | Yes |
| Regulation range () | 6 inHg - 108 psig |
| SCIP dossier no. () | b1323c86-8856-44cc-b1c6-6849abe37ee4 |
| Identical product () | 060-110166 |
| EU RoHS compliance () | Yes |
| UK RoHS compliance () | Yes |
| Enclosure rating IP () | IP44 |
| Product accessories () | Switches accessories |
| Product description () | Pressure Switch |
| Pressure Male/Female () | Male |
| China RoHS compliance () | Yes |
| Electrical connection () | Rubber cable gland |
| Oil free refrigerants () | R134aR513AR515B |
| UL approval file name () | E31024MH27572 |
| Differential [bar] [max] () | 4 bar |
| Differential [bar] [min] () | 0.7 bar |
| Differential [psi] [max] () | 58 psi |
| Differential [psi] [min] () | 10 psi |
| EU RoHS exemption clause () | No |
| Lubricants compatibility () | Oilfree applications |
| Pressure connection size () | 1/4 |
| Pressure connection type () | Flare |
| Pressure sensing element () | Bellows |
| Product Name Description () | Pressure switch |
| UL approved refrigerants () | R113R124R134aR22R404AR407AR407CR407FR407HR422BR422DR438AR448AR449AR449BR450AR452AR507AR513AR515B |
| Enclosure rating Nema (~) () | 2 |
| Max. test pressure [psig] () | 290 psig |
| SCIP dossier product name () | KP/KPI pressure switch |
| EN 60947 wiring properties () | Flex, ferrules: 0.5-1.5 mm2Flex, no ferrules: 0.7-2.5 mm2Solid/stranded: 0.75-2.5 mm2 |
| Electrical connection size () | 6-14 mm |
| Max. Working Pressure [bar] () | 17 bar |
| Max. test pressure [bar] Pe () | 20 bar |
| Quantity per packing format () | 40 pc |
| Max. Working Pressure [psig] () | 245 psig |
| Pressure connection standard () | DIN 8906 |
| EN 60947 electrical properties () | Insulation: 400VPollution degree: 3Rated impulse voltage: 4 kVShort circuit prot, fuse: 16A |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Regulation range [bar] Pe [max] () | 7.5 bar |
| Regulation range [bar] Pe [min] () | -0.2 bar |
| Ambient temperature range [°C] [max] () | 65 °C |
| Ambient temperature range [°C] [min] () | -25 °C |
| Ambient temperature range [°F] [max] () | 149 °F |
| Ambient temperature range [°F] [min] () | -13 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Regulation range [bar] Pe: -0.20 - 7.50, Differential [bar]: 0.70 - 4.00, Contact function: SPDT, Reset function: Auto, Pressure connection type: Flare, Pressure connection size: 1/4, Pressure Male/Female: Male, Enclosure rating IP: IP44, Max. Working Pressure [bar]: 17.0
