In Stock Hot Product
060-214966

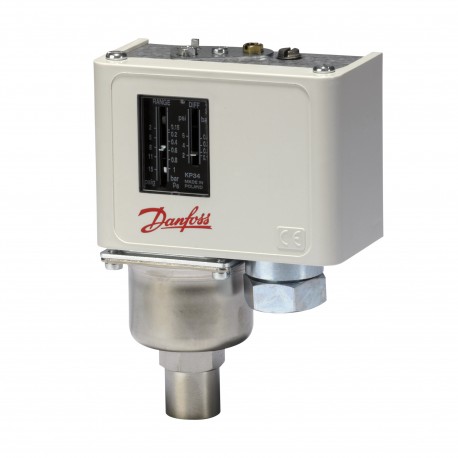

060-214966 DANFOSS REFRIGERATION KP34 Pressure Switch M/10
$0.00USD
3548 in stock
Key Specifications
EAN ():5702423228805
Type ():KP34
Volume ():1.92 Liter
Approval ():CCCCEEACLLC CDC EURO-TYSKLVDPZHRINARMRSRoHS Chinac UL us UL353, CS C22.2c UL us UL873, CS C22.2UKCA
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702423228805 |
| Type () | KP34 |
| Volume () | 1.92 Liter |
| Approval () | CCCCEEACLLC CDC EURO-TYSKLVDPZHRINARMRSRoHS Chinac UL us UL353, CS C22.2c UL us UL873, CS C22.2UKCA |
| Net weight () | 0.438 Kg |
| Serviceable () | No |
| Gross weight () | 0.55 Kg |
| Product group () | Switches and thermostats |
| Contact rating () | 120Vac,16FLA,96LRA,3APilotDuty16 A resistive, single phase240 V AC, 8 FLA, 48 LRA240V dc,12W pilot duty(0.05 A)8 A resistive, single phase |
| Packing format () | Multi pack |
| Reset function () | Auto |
| Amb. Temp. Note () | 80 °C/176 °F for max 120 min |
| Contact function () | SPDT |
| SCIP dossier no. () | b1323c86-8856-44cc-b1c6-6849abe37ee4 |
| EU RoHS compliance () | Yes |
| Enclosure rating IP () | IP30 |
| Product accessories () | Switches accessories |
| Product description () | Pressure Switch |
| Pressure Male/Female () | Female |
| Electrical connection () | Swivel cable connector |
| UL approval file name () | E31024MH27572 |
| Differential [bar] [max] () | 0.42 bar |
| Differential [bar] [min] () | 0.14 bar |
| Differential [psi] [max] () | 6 psi |
| Differential [psi] [min] () | 2 psi |
| Pressure connection size () | 1/4-18 |
| Pressure connection type () | NPT |
| Pressure sensing element () | Bellows |
| Product Name Description () | Pressure switch |
| Enclosure rating Nema (~) () | 1 |
| Max. test pressure [psig] () | 87 psig |
| EN 60947 wiring properties () | Flex, ferrules: 0.5-1.5 mm2Flex, no ferrules: 0.7-2.5 mm2Solid/stranded: 0.75-2.5 mm2 |
| Electrical connection size () | NPSM 1/2 - 14 |
| Max. Working Pressure [bar] () | 4 bar |
| Max. test pressure [bar] Pe () | 6 bar |
| Quantity per packing format () | 10 pc |
| Electrical conn. Male/Female () | Female |
| Max. Working Pressure [psig] () | 58 psig |
| Pressure connection standard () | ANSI/ASME B1.20.1 |
| EN 60947 electrical properties () | Pollution degree: 3Rated impulse voltage: 4 kVInsulation: 400VShort circuit prot, fuse: 16A |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Regulation range [bar] Pe [max] () | 1.07 bar |
| Regulation range [bar] Pe [min] () | 0.14 bar |
| Regulation range [psig] Pe [max] () | 15 psig |
| Regulation range [psig] Pe [min] () | 2 psig |
| Ambient temperature range [°C] [max] () | 65 °C |
| Ambient temperature range [°C] [min] () | -40 °C |
| Ambient temperature range [°F] [max] () | 149 °F |
| Ambient temperature range [°F] [min] () | -40 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
Pressure switch, KP34
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Regulation range [bar] Pe: 0.14 - 1.07, Differential [bar]: 0.14 - 0.42, Reset function: Auto, Pressure connection type: NPT, Pressure connection size: 1/4-18, Enclosure rating IP: IP30, Max. Working Pressure [bar]: 4.0
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
