060-123166

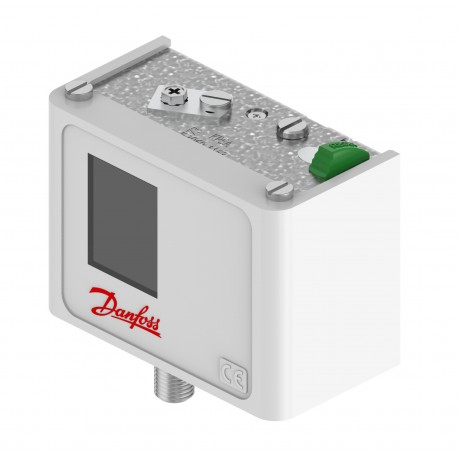

060-123166 DANFOSS REFRIGERATION Pressure switch
$0.00USD
3013 in stock
Key Specifications
EAN ():5702428016063
Type ():KP5A
Volume ():1.463 Liter
Approval ():BVCCCCECMIMDNVEACGLLLC CDC EURO-TYSKLRLVDPZHRINARMRSRoHS Chinac UL us UL873, CS C22.2UKCA
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428016063 |
| Type () | KP5A |
| Volume () | 1.463 Liter |
| Approval () | BVCCCCECMIMDNVEACGLLLC CDC EURO-TYSKLRLVDPZHRINARMRSRoHS Chinac UL us UL873, CS C22.2UKCA |
| Net weight () | 0.421 Kg |
| Serviceable () | No |
| Gross weight () | 0.456 Kg |
| Refrigerants () | R113R1234yfR1234yzR124R134aR22R404AR407AR407CR407FR407HR422BR422DR438AR448AR449AR449BR450AR452AR454CR455AR507AR513AR515BR717R1234ze(E) |
| Product group () | Switches and thermostats |
| Contact rating () | AC15=10 A, 400 VAC1=16 A, 400 VAC3=16 A, 400 VDC13=12 W, 220 VLR=112 A, 400 V |
| Packing format () | Multi pack |
| Reset function () | Manual Max |
| Amb. Temp. Note () | 80 °C/176 °F for max 120 min |
| Application note () | Not applicable for liquid line |
| Contact function () | SPDT |
| SCIP dossier no. () | b1323c86-8856-44cc-b1c6-6849abe37ee4 |
| Differential [bar] () | 3 bar |
| Differential [psi] () | 43 psi |
| EU RoHS compliance () | Yes |
| Enclosure rating IP () | IP30 |
| Product accessories () | Switches accessories |
| Product description () | Pressure Switch |
| Pressure Male/Female () | Male |
| Electrical connection () | Rubber cable gland |
| Oil free refrigerants () | R134aR513AR515B |
| UL approval file name () | E31024 |
| Lubricants compatibility () | Oilfree applications |
| Pressure connection size () | 10 x 0.75 |
| Pressure connection type () | M |
| Pressure sensing element () | Bellows |
| Product Name Description () | Pressure switch |
| UL approved refrigerants () | R113R124R134aR22R404AR407AR407CR407FR407HR422BR422DR438AR448AR449AR449BR450AR452AR507AR513AR515BR717 |
| Enclosure rating Nema (~) () | 1 |
| Max. test pressure [psig] () | 510 psig |
| SCIP dossier product name () | KP/KPI pressure switch |
| EN 60947 wiring properties () | Flex, ferrules: 0.5-1.5 mm2Flex, no ferrules: 0.7-2.5 mm2Solid/stranded: 0.75-2.5 mm2 |
| Electrical connection size () | 6-14 mm |
| Max. Working Pressure [bar] () | 35 bar |
| Max. test pressure [bar] Pe () | 35 bar |
| Quantity per packing format () | 14 pc |
| Max. Working Pressure [psig] () | 510 psig |
| Pressure connection standard () | ISO 261 |
| EN 60947 electrical properties () | Pollution degree: 3Rated impulse voltage: 4 kVInsulation: 400VShort circuit prot, fuse: 16A |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Regulation range [bar] Pe [max] () | 32 bar |
| Regulation range [bar] Pe [min] () | 8 bar |
| Regulation range [psig] Pe [max] () | 464 psig |
| Regulation range [psig] Pe [min] () | 116 psig |
| Ambient temperature range [°C] [max] () | 65 °C |
| Ambient temperature range [°C] [min] () | -40 °C |
| Ambient temperature range [°F] [max] () | 149 °F |
| Ambient temperature range [°F] [min] () | -40 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
KP5A Pressure Switch M/14
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Regulation range [bar] Pe: 8.00 - 32.00, Differential [bar]: 3.00, Contact function: SPDT, Reset function: Manual Max, Pressure connection type: M, Pressure connection size: 10 x 0.75, Pressure Male/Female: Male, Enclosure rating IP: IP30, Max. Working Pressure [bar]: 35.0
