060-120066

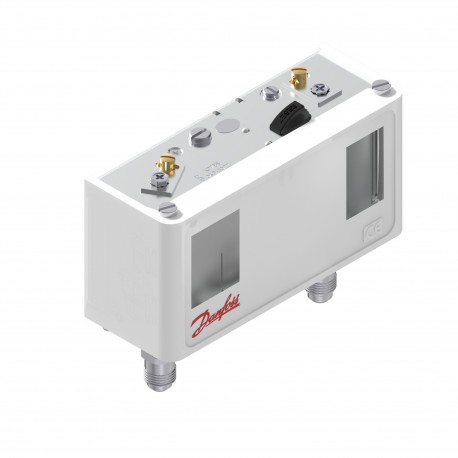

060-120066 DANFOSS REFRIGERATION Pressure switch
$0.00USD
3748 in stock
Key Specifications
EAN ():5702428517133
Type ():KP7BS
Volume ():0.854 Liter
Approval ():BVCCCCEDNVEACGLLLC CDC EURO-TYSKLRLVDPEDPZHRINARMRSRoHS ChinaUKCAc UL us UL873, CS C22.2
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428517133 |
| Type () | KP7BS |
| Volume () | 0.854 Liter |
| Approval () | BVCCCCEDNVEACGLLLC CDC EURO-TYSKLRLVDPEDPZHRINARMRSRoHS ChinaUKCAc UL us UL873, CS C22.2 |
| Net weight () | 0.487 Kilogram |
| Fluid Group () | 1 |
| Serviceable () | No |
| CE evaluated () | Yes |
| EEE category () | 5 small equipment (any external dimension50 cm) |
| Gross weight () | 0.532 Kilogram |
| PED category () | IV |
| Refrigerants () | R113R124R134aR22R404AR407AR407CR407FR407HR422BR422DR438AR448AR449AR449BR450AR452AR507AR513AR515B |
| UL evaluated () | Yes |
| Product group () | Switches and thermostats |
| Contact rating () | AC15=10 A, 400 VAC1=16 A, 400 VAC3=16 A, 400 VDC13=12 W, 220 VLR=112 A, 400 V |
| Packing format () | Multi pack |
| Amb. Temp. Note () | 80 °C/176 °F for max 120 min |
| Application note () | Not applicable for liquid line |
| Contact function () | 2 SPST(NC) |
| In scope of WEEE () | Yes |
| SCIP dossier no. () | b1323c86-8856-44cc-b1c6-6849abe37ee4 |
| EU RoHS compliance () | Yes |
| UK RoHS compliance () | Yes |
| Enclosure rating IP () | IP30 |
| Product accessories () | Switches accessories |
| Product description () | Dual Pressure Control |
| Burst pressure [bar] () | 140 bar |
| Pressure Male/Female () | Male |
| China RoHS compliance () | Yes |
| Electrical connection () | Rubber cable gland |
| Oil free refrigerants () | R134aR513AR515B |
| UL approval file name () | E31024 |
| MWP left side [bar] Pe () | 35 bar |
| MWP left side [psig] Pe () | 510 psig |
| MWP right side [bar] Pe () | 32 bar |
| EU RoHS exemption clause () | No |
| Lubricants compatibility () | Oilfree applications |
| MWP right side [psig] Pe () | 464 psig |
| Pressure connection size () | 1/4 |
| Pressure connection type () | Flare |
| Pressure sensing element () | Bellows |
| Product Name Description () | Pressure switch |
| UL approved refrigerants () | R113R124R134aR22R404AR407AR407CR407FR407HR422BR422DR438AR448AR449AR449BR450AR452AR507AR513AR515B |
| Enclosure rating Nema (~) () | 1 |
| Reset function, left side () | Manual Max |
| SCIP dossier product name () | KP/KPI pressure switch |
| EN 60947 wiring properties () | Flex, ferrules: 0.5-1.5 mm2Flex, no ferrules: 0.7-2.5 mm2Solid/stranded: 0.75-2.5 mm2 |
| Electrical connection size () | 6-14 mm |
| Reset function, right side () | Manual Max |
| Quantity per packing format () | 24 pc |
| Differential left side [bar] () | 4 bar |
| Differential left side [psi] () | 58 psi |
| Pressure connection standard () | DIN 8906 |
| Differential right side [bar] () | 4 bar |
| Differential right side [psi] () | 58 psi |
| Max.test press.left side[bar] () | 35 bar |
| EN 60947 electrical properties () | Insulation: 400VPollution degree: 3Rated impulse voltage: 4 kVShort circuit prot, fuse: 16A |
| Max.test press.right side[bar] () | 35 bar |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Regulation left side [bar]Pe [max] () | 32 bar |
| Regulation left side [bar]Pe [min] () | 8 bar |
| Regulation left side [psig]Pe [max] () | 464 psig |
| Regulation left side [psig]Pe [min] () | 116 psig |
| Regulation right side [bar]Pe [max] () | 32 bar |
| Regulation right side [bar]Pe [min] () | 8 bar |
| Regulation right side [psig]Pe [max] () | 464 psig |
| Regulation right side [psig]Pe [min] () | 116 psig |
| Ambient temperature range [°C] [max] () | 65 °C |
| Ambient temperature range [°C] [min] () | -25 °C |
| Ambient temperature range [°F] [max] () | 149 °F |
| Ambient temperature range [°F] [min] () | -13 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
KP7BS Pressure Switch M/24
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Regulation left side [bar]Pe: 8.00 - 32.00, Regulation right side [bar]Pe: 8.0 - 32.0, Differential left side [bar]: 4.00, Differential right side [bar]: 4.0, Contact function: 2 SPST(NC), Reset function, left side: Manual Max, Reset function, right side: Manual Max
