060-113866

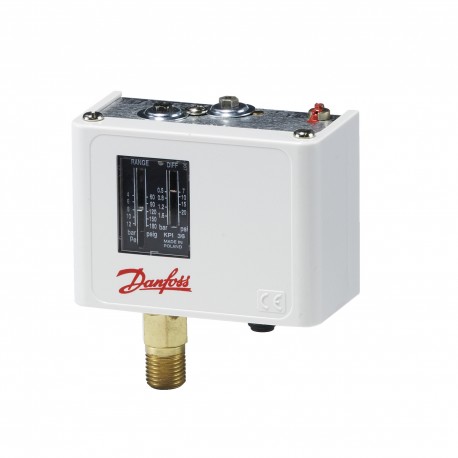

060-113866 DANFOSS REFRIGERATION Pressure switch
$0.00USD
4047 in stock
Key Specifications
EAN ():5702423146673
Type ():KPI36
Volume ():0.57 Liter
Approval ():CCCCECMIMEACLLC CDC EURO-TYSKLVDPZHRINARoHS Chinac UL us UL873, CS C22.2UKCA
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702423146673 |
| Type () | KPI36 |
| Volume () | 0.57 Liter |
| Approval () | CCCCECMIMEACLLC CDC EURO-TYSKLVDPZHRINARoHS Chinac UL us UL873, CS C22.2UKCA |
| Net weight () | 0.309 Kg |
| Serviceable () | No |
| Gross weight () | 0.344 Kg |
| Product group () | Switches and thermostats |
| Contact rating () | AC15=4 A, 440 VAC1=10 A, 440 VAC3=6 A, 440 VDC13=12 W, 220 Vfor gold 1…30 mA, 5...30 VLR=36 A, 240 VLR=48 A, 120 V |
| Packing format () | Multi pack |
| Reset function () | Auto |
| Amb. Temp. Note () | 80 °C/176 °F for max 120 min |
| Contact function () | SPDT gold |
| SCIP dossier no. () | b1323c86-8856-44cc-b1c6-6849abe37ee4 |
| EU RoHS compliance () | No - out of scope |
| Enclosure rating IP () | IP30 |
| Product accessories () | Switches accessories |
| Product description () | Pressure Switch |
| Pressure Male/Female () | Male |
| Electrical connection () | Rubber cable gland |
| UL approval file name () | E31024 |
| Differential [bar] [max] () | 1.6 bar |
| Differential [bar] [min] () | 0.5 bar |
| Differential [psi] [max] () | 23 psi |
| Differential [psi] [min] () | 7 psi |
| Pressure connection size () | 1/4 |
| Pressure connection type () | G |
| Pressure sensing element () | Bellows |
| Product Name Description () | Pressure switch |
| Enclosure rating Nema (~) () | 1 |
| Max. test pressure [psig] () | 261 psig |
| EN 60947 wiring properties () | Flex, ferrules: 0.5-1.5 mm2Flex, no ferrules: 0.7-2.5 mm2Solid/stranded: 0.75-2.5 mm2 |
| Electrical connection size () | 6-14 mm |
| Max. Working Pressure [bar] () | 18 bar |
| Max. test pressure [bar] Pe () | 18 bar |
| Quantity per packing format () | 36 pc |
| Max. Working Pressure [psig] () | 261 psig |
| Pressure connection standard () | ISO 228-1 |
| EN 60947 electrical properties () | Pollution degree: 3Rated impulse voltage: 4 kVInsulation: 400VShort circuit prot, fuse: 16A |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Regulation range [bar] Pe [max] () | 12 bar |
| Regulation range [bar] Pe [min] () | 4 bar |
| Regulation range [psig] Pe [max] () | 174 psig |
| Regulation range [psig] Pe [min] () | 58 psig |
| Ambient temperature range [°C] [max] () | 65 °C |
| Ambient temperature range [°C] [min] () | -40 °C |
| Ambient temperature range [°F] [max] () | 149 °F |
| Ambient temperature range [°F] [min] () | -40 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
KPI36 Pressure Switch M/36
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Regulation range [bar] Pe: 4.00 - 12.00, Differential [bar]: 0.50 - 1.60, Reset function: Auto, Pressure connection type: G, Pressure connection size: 1/4, Enclosure rating IP: IP30, Max. Working Pressure [bar]: 18.0
