060-001366

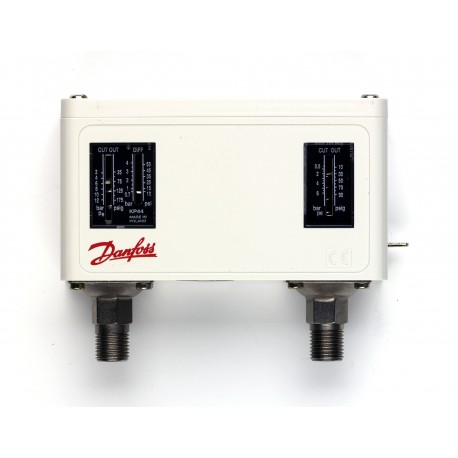

060-001366 DANFOSS REFRIGERATION Pressure switch
$0.00USD
4540 in stock
Key Specifications
EAN ():5702423148592
Type ():KP44
Volume ():1.281 Liter
Approval ():CCCCECMIMEACLLC CDC EURO-TYSKLVDPZHRINARMRSRoHS ChinaUKCAc UL us UL873, CS C22.2
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702423148592 |
| Type () | KP44 |
| Volume () | 1.281 Liter |
| Approval () | CCCCECMIMEACLLC CDC EURO-TYSKLVDPZHRINARMRSRoHS ChinaUKCAc UL us UL873, CS C22.2 |
| Net weight () | 0.52 Kilogram |
| Serviceable () | No |
| CE evaluated () | Yes |
| EEE category () | 5 small equipment (any external dimension50 cm) |
| Gross weight () | 0.572 Kilogram |
| UL evaluated () | Yes |
| Product group () | Switches and thermostats |
| Contact rating () | AC15=10 A, 400 VAC1=16 A, 400 VAC3=16 A, 400 VDC13=12 W, 220 VLR=112 A, 400 V |
| Packing format () | Multi pack |
| Amb. Temp. Note () | 80 °C/176 °F for max 120 min |
| Contact function () | SPST(NO)+SPST(NC) |
| In scope of WEEE () | Yes |
| SCIP dossier no. () | b1323c86-8856-44cc-b1c6-6849abe37ee4 |
| EU RoHS compliance () | Yes |
| UK RoHS compliance () | Yes |
| Enclosure rating IP () | IP22 |
| Product accessories () | Switches accessories |
| Product description () | Dual Pressure Control |
| Pressure Male/Female () | Male |
| China RoHS compliance () | Yes |
| Electrical connection () | Rubber cable gland |
| UL approval file name () | E31024 |
| MWP left side [bar] Pe () | 17 bar |
| MWP left side [psig] Pe () | 245 psig |
| MWP right side [bar] Pe () | 17 bar |
| EU RoHS exemption clause () | No |
| MWP right side [psig] Pe () | 245 psig |
| Pressure connection size () | 1/4 |
| Pressure connection type () | G |
| Pressure sensing element () | Bellows |
| Product Name Description () | Pressure switch |
| Enclosure rating Nema (~) () | 2 |
| Reset function, left side () | Auto |
| EN 60947 wiring properties () | Flex, ferrules: 0.5-1.5 mm2Flex, no ferrules: 0.7-2.5 mm2Solid/stranded: 0.75-2.5 mm2 |
| Electrical connection size () | 6-14 mm |
| Reset function, right side () | Auto |
| Quantity per packing format () | 32 pc |
| Pressure connection standard () | ISO 228-1 |
| Differential right side [bar] () | 1 bar |
| Differential right side [psi] () | 14.5 psi |
| Max.test press.left side[bar] () | 25 bar |
| EN 60947 electrical properties () | Insulation: 400VPollution degree: 3Rated impulse voltage: 4 kVShort circuit prot, fuse: 16A |
| Max.test press.right side[bar] () | 19 bar |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Differential left side [bar] [max] () | 4 bar |
| Differential left side [bar] [min] () | 0.7 bar |
| Differential left side [psi] [max] () | 58 psi |
| Differential left side [psi] [min] () | 10 psi |
| Regulation left side [bar]Pe [max] () | 12 bar |
| Regulation left side [bar]Pe [min] () | 2 bar |
| Regulation left side [psig]Pe [max] () | 174 psig |
| Regulation left side [psig]Pe [min] () | 29 psig |
| Regulation right side [bar]Pe [max] () | 6 bar |
| Regulation right side [bar]Pe [min] () | 0.5 bar |
| Regulation right side [psig]Pe [max] () | 87 psig |
| Regulation right side [psig]Pe [min] () | 7 psig |
| Ambient temperature range [°C] [max] () | 65 °C |
| Ambient temperature range [°C] [min] () | -40 °C |
| Ambient temperature range [°F] [max] () | 149 °F |
| Ambient temperature range [°F] [min] () | -40 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
KP44 Pressure Switch M/32
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Regulation left side [bar]Pe: 2.00 - 12.00, Regulation right side [bar]Pe: 0.5 - 6.0, Differential left side [bar]: 0.70 - 4.00, Differential right side [bar]: 1.0, Contact function: SPST(NO)+SPST(NC), Reset function, left side: Auto, Reset function, right side: Auto
