042U471402

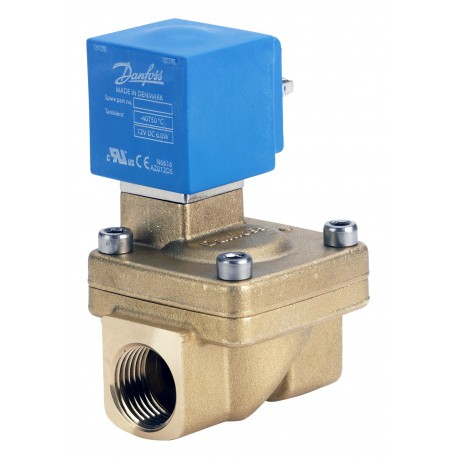

042U471402 DANFOSS CONTROLES INDUSTRIALES Solenoid valve, EV220W
$0.00USD
3462 in stock
Key Specifications
EAN ():5702428977579
Type ():EV220W
Volume ():0.865 Liter
Actuator ():W
Supplier Information
DANFOSS INDUSTRIAL AUTOMATION
Products: 1269
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428977579 |
| Type () | EV220W |
| Volume () | 0.865 Liter |
| Actuator () | W |
| Approval () | WRASCEUKCA |
| Function () | NC |
| Coil type () | AZ |
| Operation () | Servo-operated (diaphragm) |
| Net weight () | 0.66 Kg |
| Application () | Open |
| Coil option () | Clip-on |
| Fluid Group () | 1 |
| Serviceable () | No |
| Gross weight () | 0.7 Kg |
| Actuator size () | 9 mm clip-on W |
| Body material () | Brass |
| Product group () | Solenoid valves |
| Seal Material () | EPDM |
| Flow direction () | Single-flow |
| Number of ways () | 2/2 |
| Packing format () | Multi pack |
| Connection type () | G |
| Kv value [m³/h] () | 4 m³/h |
| SCIP dossier no. () | 251bcd5a-3b75-4c2a-9b66-d0bbba166a77 |
| Type designation () | EV220W 14 |
| Orifice size [mm] () | 14 mm |
| Specification key () | EV220W 14 G 12E NC000 AS024DS |
| Actuator size [in] () | 0.35 in |
| Cv value [gal/min] () | 4.6 gal/min |
| EU RoHS compliance () | Yes with exemptions |
| Parts Program name () | EV220W |
| Connection material () | Brass |
| Connection standard () | ISO 228-1 |
| Enclosure rating IP () | IP65 |
| Product accessories () | Solenoid coil accessoriesSolenoid valve accessories |
| Actuator system [mm] () | 9 mm |
| Connection size [in] () | 1/2 |
| Electrical connection () | Spade DIN 43650-A |
| Media recommendations () | Water & Brine |
| Supply voltage [V] DC () | 24 V |
| Flow direction indicator () | Embossed 1-way arrow |
| Max. test pressure [bar] () | 15 bar |
| Power consumption [W] DC () | 6.5 W |
| Product Name Description () | Solenoid valve |
| Max media viscosity [cSt] () | 50 cSt |
| Max. test pressure [psig] () | 217.5 psig |
| Orifice size fraction [in] () | 4/16 in |
| Max. Working Pressure [bar] () | 10 bar |
| Quantity per packing format () | 12 pc |
| Connection Internal/External () | Internal |
| Max. Working Pressure [psig] () | 145 psig |
| Est. time to open, water [ms] () | 100 ms |
| Ambient temperature max. [°C] () | 50 °C |
| Ambient temperature max. [°F] () | 122 °F |
| Est. time to close, water [ms] () | 400 ms |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Differential pressure [bar] [max] () | 10 bar |
| Differential pressure [bar] [min] () | 0.3 bar |
| Differential pressure [psi] [max] () | 145 psi |
| Differential pressure [psi] [min] () | 4.35 psi |
| Medium temperature range [°C] [max] () | 100 °C |
| Medium temperature range [°C] [min] () | -30 °C |
| Medium temperature range [°F] [max] () | 212 °F |
| Medium temperature range [°F] [min] () | -22 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
Solenoid valve, EV220W, Function: NC, G, 1/2, 4.000 m³/h, EPDM
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Approval: CE; UKCA; WRAS, Body material: Brass, Operation: Servo-operated (diaphragm), Number of ways: 2/2
