042N8601

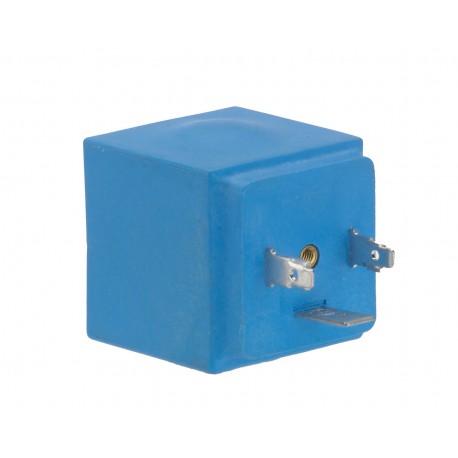

042N8601 DANFOSS REFRIGERATION Solenoid coil, AS230CS
$0.00USD
3825 in stock
Key Specifications
EAN ():5702428024105
Type ():AS230CS
Colour ():Blue
Volume ():0.14 Liter
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428024105 |
| Type () | AS230CS |
| Colour () | Blue |
| Volume () | 0.14 Liter |
| Approval () | LLC CDC TYSK |
| Coil type () | AS |
| Compliance () | EN 60730-1 |
| Net weight () | 0.112 Kilogram |
| Serviceable () | No |
| EEE category () | 5 small equipment (any external dimension50 cm) |
| Gross weight () | 0.12 Kilogram |
| Actuator size () | 9 mm |
| Product group () | Solenoid valves |
| Coil fastening () | Clip-on |
| Frequency [Hz] () | 50/60 Hz |
| Packing format () | Industrial pack |
| Coil connection () | DIN Spade |
| In scope of WEEE () | Yes |
| SCIP dossier no. () | 23785618-b379-4da7-a913-ecd40c8fae6d |
| Type designation () | AS230CS |
| Spare part number () | 042N7601 |
| EU RoHS compliance () | Out of scope |
| Parts Program name () | EV220TEV220W |
| UK RoHS compliance () | Out of scope |
| Enclosure rating IP () | IP00 |
| Product accessories () | Solenoid coil accessories |
| Electrical connector () | 3 x spades |
| China RoHS compliance () | Out of scope |
| Electrical connection () | DIN Spade |
| Supply voltage [V] AC () | 230 V |
| Product Name Description () | Solenoid coil |
| Rel. Humidity conditions () | Non-condensation |
| SCIP dossier product name () | Solenoid coils |
| Electrical connection size () | 6.3 mm x 0.8 mm |
| Power consumption [W] 50Hz () | 8 W |
| Power consumption [W] 60Hz () | 7 W |
| Rel. Humidity [% RH] [max] () | 97 % |
| Rel. Humidity [% RH] [min] () | 0 % |
| Power consumption 50Hz [VA] () | 16 VA |
| Power consumption 60Hz [VA] () | 14 VA |
| Quantity per packing format () | 40 pc |
| Supply voltage 50Hz Max [V] () | 230 V |
| Supply voltage 60Hz Max [V] () | 240 V |
| Supply voltage 60Hz Min [V] () | 208 V |
| Electrical connection standard () | EN175301-803 |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Ambient temperature range [°C] [max] () | 50 °C |
| Ambient temperature range [°C] [min] () | -40 °C |
| Ambient temperature range [°F] [max] () | 122 °F |
| Ambient temperature range [°F] [min] () | -40 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
Solenoid coil, AS230CS, DIN Spade, Supply voltage [V] AC: 230, Industrial pack
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Electrical connection: DIN Spade, Supply voltage [V] AC: 230, Frequency [Hz]: 50/60 Hz, Enclosure rating IP: IP00
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
