042N8501

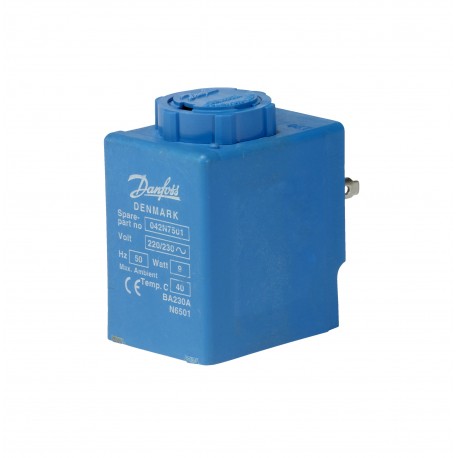

042N8501 DANFOSS REFRIGERATION Solenoid coil, BA230A
$0.00USD
3361 in stock
Key Specifications
EAN ():5702423001620
Type ():BA230A
Colour ():Blue
Volume ():0.241 Liter
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702423001620 |
| Type () | BA230A |
| Colour () | Blue |
| Volume () | 0.241 Liter |
| Net weight () | 0.155 Kilogram |
| Duty rating () | Continuous |
| Serviceable () | No |
| EEE category () | 5 small equipment (any external dimension50 cm) |
| Gross weight () | 0.165 Kilogram |
| Actuator size () | 13.5 mm |
| Product group () | Solenoid valves |
| Coil fastening () | Nut and snap |
| Frequency [Hz] () | 50 Hz |
| Packing format () | Industrial pack |
| Parts included () | NutSnap fastener |
| Coil connection () | DIN Spade |
| In scope of WEEE () | Yes |
| SCIP dossier no. () | 23785618-b379-4da7-a913-ecd40c8fae6d |
| Type designation () | BA230A |
| Identical product () | 042N7501 |
| EU RoHS compliance () | Out of scope |
| Parts Program name () | EV210BEV220B 15 - 50EV220B 6 - 22EV220B 65 - 100EV310B |
| UK RoHS compliance () | Out of scope |
| Enclosure rating IP () | IP00 |
| Product accessories () | Solenoid coil accessories |
| Coil design standard () | VDE 0580 |
| Electrical connector () | 3 x spades |
| China RoHS compliance () | Out of scope |
| Electrical connection () | DIN Spade |
| Product Name Description () | Solenoid coil |
| Rel. Humidity conditions () | Non-condensation |
| SCIP dossier product name () | Solenoid coils |
| Electrical connection size () | 6.3 mm x 0.8 mm |
| Power consumption [W] 50Hz () | 12 W |
| Rel. Humidity [% RH] [max] () | 97 % |
| Rel. Humidity [% RH] [min] () | 0 % |
| Power consumption 50Hz [VA] () | 22 VA |
| Quantity per packing format () | 50 pc |
| Supply voltage 50Hz Max [V] () | 230 V |
| Supply voltage 50Hz Min [V] () | 220 V |
| Supply voltage [V] AC [max] () | 230 V |
| Supply voltage [V] AC [min] () | 220 V |
| Coil winding insulation class () | Class H to IEC 85 |
| Electrical connection standard () | EN175301-803 |
| REACH Candidate List substances () | No |
| Ambient temperature range [°C] [max] () | 40 °C |
| Ambient temperature range [°C] [min] () | -40 °C |
| Ambient temperature range [°F] [max] () | 104 °F |
| Ambient temperature range [°F] [min] () | -40 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
Solenoid coil, BA230A, DIN Spade, Supply voltage [V] AC: 220 - 230, Industrial pack
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Electrical connection: DIN Spade, Supply voltage [V] AC: 220 - 230, Frequency [Hz]: 50 Hz, Enclosure rating IP: IP00
