042N4552

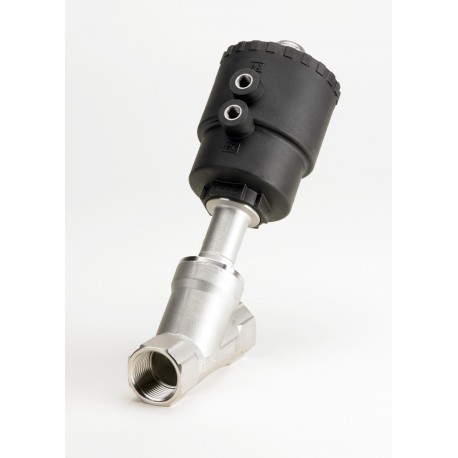

042N4552 DANFOSS CONTROLES INDUSTRIALES Angle-seat externally operated valve, AV210B
$0.00USD
4513 in stock
Key Specifications
EAN ():5702423194469
Type ():AV210B
Volume ():2.097 Liter
Function ():NC
Supplier Information
DANFOSS INDUSTRIAL AUTOMATION
Products: 1269
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702423194469 |
| Type () | AV210B |
| Volume () | 2.097 Liter |
| Function () | NC |
| Operation () | Piston (angle) |
| Net weight () | 1.26 Kilogram |
| Serviceable () | Ext. operat. valve spare parts |
| EEE category () | 5 small equipment (any external dimension50 cm) |
| Gross weight () | 1.36 Kilogram |
| Body material () | Stainless steel |
| Product group () | Externally operated valves |
| Seal Material () | PTFE |
| Packing format () | Multi pack |
| Connection type () | NPT |
| In scope of WEEE () | Yes |
| Kv value [m³/h] () | 10 m³/h |
| SCIP dossier no. () | c78cac16-ffa0-4484-91a4-c13077aa140f |
| Orifice size [mm] () | 20 mm |
| Cv value [gal/min] () | 11.5 gal/min |
| EU RoHS compliance () | Out of scope |
| UK RoHS compliance () | Out of scope |
| Product accessories () | Ext. operat. valve accessories |
| Connection size [in] () | 3/4 |
| China RoHS compliance () | Out of scope |
| Max. test pressure [bar] () | 37.5 bar |
| Product Name Description () | Angle-seat ext operated valve |
| Max. test pressure [psig] () | 544 psig |
| SCIP dossier product name () | AV210 stainless |
| Control head diameter [mm] () | 50 mm |
| Max. Working Pressure [bar] () | 25 bar |
| Quantity per packing format () | 8 pc |
| Connection Internal/External () | Internal |
| Max. Working Pressure [psig] () | 363 psig |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Differential pressure [bar] [max] () | 10 bar |
| Differential pressure [bar] [min] () | 0 bar |
| Control pressure range [bar] [max] () | 10 bar |
| Control pressure range [bar] [min] () | 4 bar |
| Control pressure range [psig] [max] () | 145 psig |
| Control pressure range [psig] [min] () | 58 psig |
| Medium temperature range [°C] [max] () | 180 °C |
| Medium temperature range [°C] [min] () | -30 °C |
| Medium temperature range [°F] [max] () | 356 °F |
| Medium temperature range [°F] [min] () | -22 °F |
| Ambient temperature range [°C] [max] () | 60 °C |
| Ambient temperature range [°C] [min] () | -30 °C |
| Ambient temperature range [°F] [max] () | 140 °F |
| Ambient temperature range [°F] [min] () | -22 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
Angle-seat ext operated valve, AV210B, NPT, 3/4, PTFE, Function: NC
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Body material: Stainless steel
