042N4412

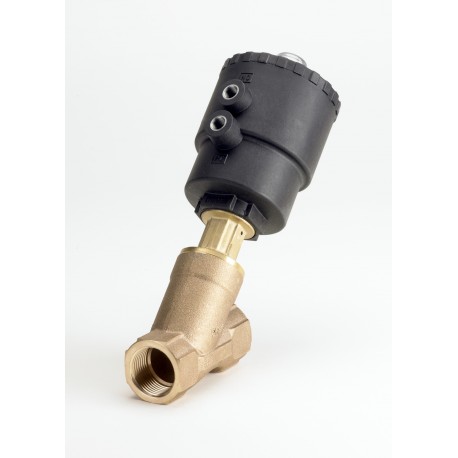

042N4412 DANFOSS CONTROLES INDUSTRIALES Angle-seat ext operated valve, AV210C
$0.00USD
3902 in stock
Key Specifications
EAN ():5702428364881
Type ():AV210C
Volume ():2.457 Liter
Closing ():Against flow
Supplier Information
DANFOSS INDUSTRIAL AUTOMATION
Products: 1269
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428364881 |
| Type () | AV210C |
| Volume () | 2.457 Liter |
| Closing () | Against flow |
| Function () | NC |
| Operation () | Piston (angle) |
| Net weight () | 1.592 Kg |
| Serviceable () | Ext. operat. valve spare parts |
| Gross weight () | 1.692 Kg |
| Body material () | Bronze |
| Product group () | Externally operated valves |
| Seal Material () | PTFE |
| Packing format () | Single pack |
| Connection type () | G |
| Kv value [m³/h] () | 20 m³/h |
| Orifice size [mm] () | 25 mm |
| Cv value [gal/min] () | 23.1 gal/min |
| EU RoHS compliance () | No - out of scope |
| Product accessories () | Ext. operat. valve accessories |
| Connection size [in] () | 1 |
| Max. test pressure [bar] () | 24 bar |
| Product Name Description () | Angle-seat ext operated valve |
| Max. test pressure [psig] () | 348 psig |
| Control head diameter [mm] () | 50 mm |
| Max. Working Pressure [bar] () | 16 bar |
| Quantity per packing format () | 1 pc |
| Connection Internal/External () | Internal |
| Max. Working Pressure [psig] () | 232 psig |
| Differential pressure [bar] [max] () | 11 bar |
| Differential pressure [bar] [min] () | 0 bar |
| Control pressure range [bar] [max] () | 10 bar |
| Control pressure range [bar] [min] () | 4 bar |
| Control pressure range [psig] [max] () | 145 psig |
| Control pressure range [psig] [min] () | 58 psig |
| Medium temperature range [°C] [max] () | 180 °C |
| Medium temperature range [°C] [min] () | -30 °C |
| Medium temperature range [°F] [max] () | 356 °F |
| Medium temperature range [°F] [min] () | -22 °F |
| Ambient temperature range [°C] [max] () | 60 °C |
| Ambient temperature range [°C] [min] () | -30 °C |
| Ambient temperature range [°F] [max] () | 140 °F |
| Ambient temperature range [°F] [min] () | -22 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
Angle-seat ext operated valve, AV210C, G, 1, PTFE, Function: NC
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Body material: Bronze
