In Stock Hot Product
042N4230

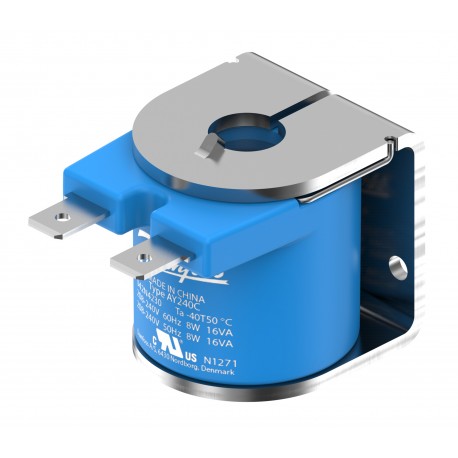

042N4230 DANFOSS REFRIGERATION Solenoid coil, AY240C
$0.00USD
4822 in stock
Key Specifications
EAN ():5702423272433
Type ():AY240C
Colour ():Blue
Volume ():0.084 Liter
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702423272433 |
| Type () | AY240C |
| Colour () | Blue |
| Volume () | 0.084 Liter |
| Approval () | LLC CDC TYSKcURus |
| Compliance () | UL 429 |
| Net weight () | 0.099 Kg |
| Serviceable () | No |
| Gross weight () | 0.11 Kg |
| Actuator size () | 9 mm |
| Product group () | Solenoid valves |
| Coil fastening () | Clip-on |
| Frequency [Hz] () | 50/60 Hz |
| Packing format () | Multi pack |
| Coil connection () | US 0.25 in Spade |
| Type designation () | AY240C |
| Identical product () | 042N8230 |
| Spare part number () | 042N4230 |
| EU RoHS compliance () | No - out of scope |
| Enclosure rating IP () | IP00 |
| Product accessories () | Solenoid coil accessories |
| Electrical connector () | 2 x spades |
| Electrical connection () | US Spade |
| UL approval file name () | MH29671 |
| Product Name Description () | Solenoid coil |
| Electrical connection size () | 0.25 in |
| Power consumption [W] 50Hz () | 8 W |
| Power consumption [W] 60Hz () | 8 W |
| Power consumption 50Hz [VA] () | 16 VA |
| Power consumption 60Hz [VA] () | 16 VA |
| Quantity per packing format () | 24 pc |
| Supply voltage 50Hz Max [V] () | 240 V |
| Supply voltage 50Hz Min [V] () | 208 V |
| Supply voltage 60Hz Max [V] () | 240 V |
| Supply voltage 60Hz Min [V] () | 208 V |
| Supply voltage [V] AC [max] () | 240 V |
| Supply voltage [V] AC [min] () | 208 V |
| REACH Candidate List substances () | No |
| Ambient temperature range [°C] [max] () | 50 °C |
| Ambient temperature range [°C] [min] () | -40 °C |
| Ambient temperature range [°F] [max] () | 120 °F |
| Ambient temperature range [°F] [min] () | -40 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
Solenoid coil, AY240C, US Spade, Supply voltage [V] AC: 208 - 240, Multi pack
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Electrical connection: US Spade, Supply voltage [V] AC: 208 - 240, Frequency [Hz]: 50/60 Hz, Enclosure rating IP: IP00
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
