042N1256

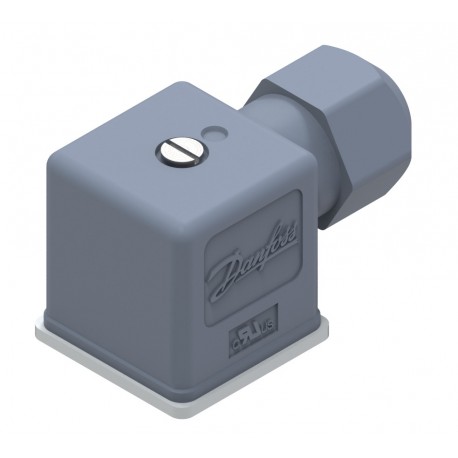

042N1256 DANFOSS CONTROLES INDUSTRIALES Type B coil 018Z 042N Coil Type B, Cable Connector
$0.00USD
3093 in stock
Key Specifications
EAN ():5715162295557
Type ():Spare part
Colour ():Grey
Volume ():0.034 Liter
Supplier Information
DANFOSS INDUSTRIAL AUTOMATION
Products: 1269
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5715162295557 |
| Type () | Spare part |
| Colour () | Grey |
| Volume () | 0.034 Liter |
| Approval () | CEUKCA |
| Contacts () | 2 + PE |
| Body type () | Opaque |
| Net weight () | 20.3 Gram |
| Gasket type () | Flat |
| Gross weight () | 26 Gram |
| Product group () | Solenoid coil accessories |
| Packing format () | Multi pack |
| Gasket material () | Silicone |
| SCIP dossier no. () | ca884a74-c381-4e51-9886-3ece63537f8e |
| Type designation () | Cable plug |
| Used for product () | 018F Coil Type B018Z Coil Type B042N Coil Type B |
| EU RoHS compliance () | No - out of scope |
| Enclosure rating IP () | IP67 |
| Cable holder material () | PA6 + 20% GF |
| Supply voltage [V] AC () | 250 V |
| Supply voltage [V] DC () | 250 V |
| Terminal block material () | PA66 + 25%GF |
| Product Name Description () | Cable plug |
| Cable diameter [in] [max] () | 0.35 in |
| Cable diameter [in] [min] () | 0.16 in |
| Cable diameter [mm] [max] () | 9 mm |
| Cable diameter [mm] [min] () | 4 mm |
| SCIP dossier product name () | Accessory Cable Plug IP67 EN175301-803 |
| Conductor size, max. [mm2] () | 1.5 mm² |
| Electrical connection form () | Form A |
| Operating current max. [A] () | 16 A |
| Quantity per packing format () | 100 pc |
| Contact resistance max. [mOhm] () | 15 mOhm |
| Electrical connection standard () | DIN EN 175301-803A |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Ambient temperature range [°C] [max] () | 125 °C |
| Ambient temperature range [°C] [min] () | -40 °C |
| Ambient temperature range [°F] [max] () | 257 °F |
| Ambient temperature range [°F] [min] () | -40 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
Spare part, 042N Coil Type B; 018F Coil Type B; 018Z Coil Type B, Cable plug
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Product Type: Spare part, Used for product: 042N Coil Type B; 018F Coil Type B; 018Z Coil Type B, Type designation: Cable plug, Cable plug
